Adjusting Front Axle Toe-In

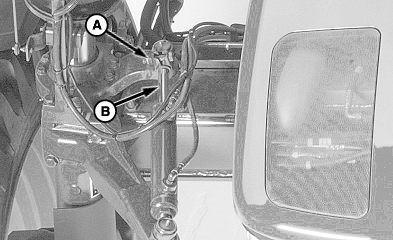

N76714-UN-12JUN07

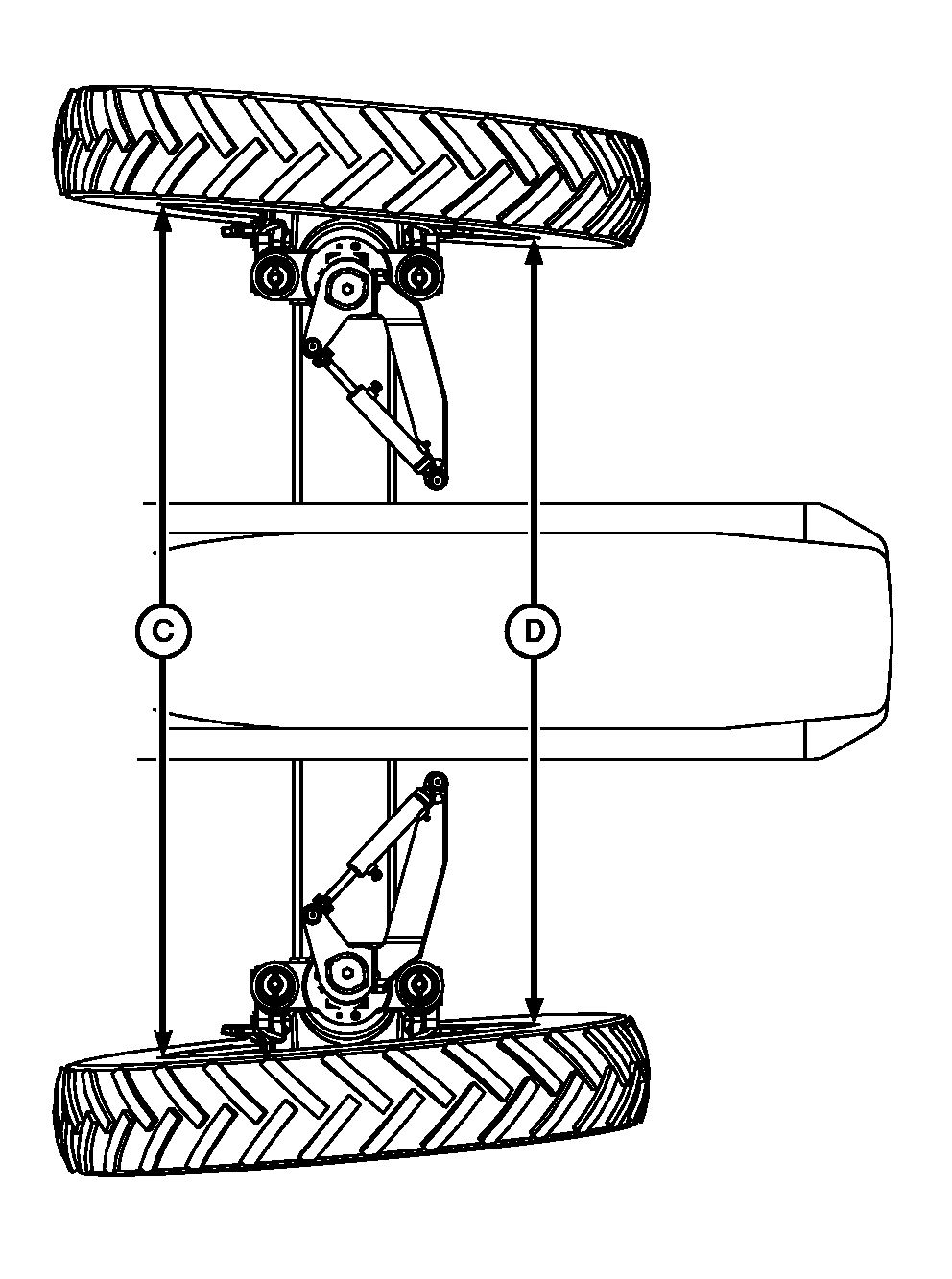

N65827-UN-05APR04

A - Clamp

B - Cylinder Rod

C - Dimension

D - Dimension

1. Loosen clamp (A).

2. Adjust cylinder length by turning cylinder rod (B).

3. Repeat steps 1 and 2 for opposite side of machine.

4. Move left and right tires evenly until difference between (C and D) are within specified range.

   Item	Measurement	Specification
   Front Wheels	Toe-In	10—25 mm (3/8—1 in.)

   NOTE: With cylinders at half stroke, dimension (F) should be 10—25 mm (3/8—1 in.) less than dimension (E).

5. Tighten clamp on each side of machine.

6. Perform Check Front Axle Toe-In procedure to verify adjustments.
