Using Boom Return to Height

1.

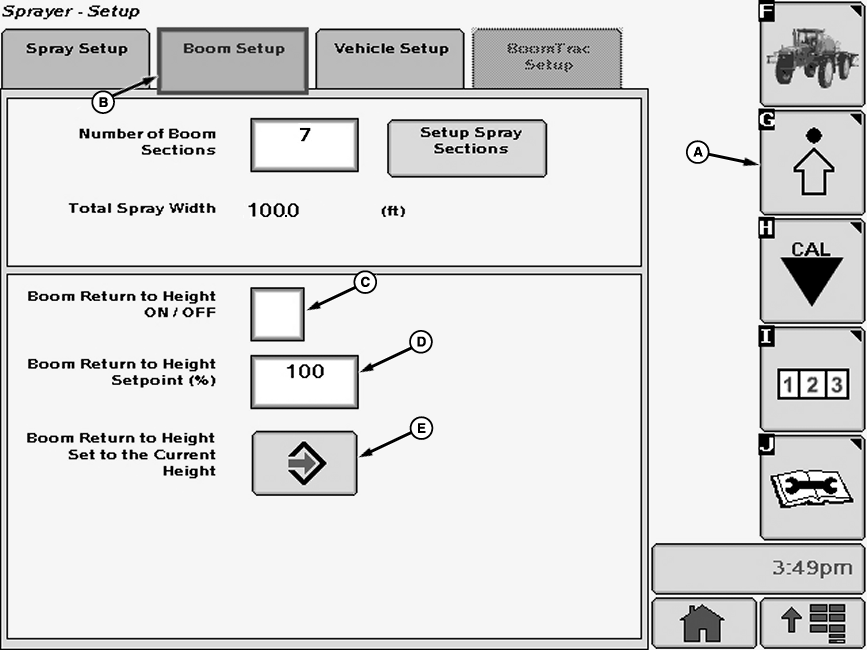

   N74758-UN-17JAN07


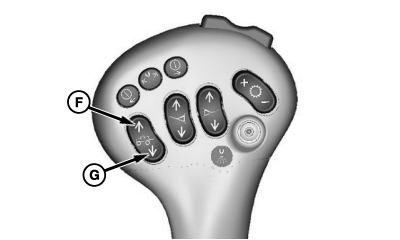

   N74876-UN-23JAN07

   A - Setup Softkey

   B - Boom Setup Tab

   C - Check Box

   D - Input Box

   E - Enter Button

   F - Top of Boom Raise/Lower Switch

   G - Bottom of Boom Raise/Lower Switch

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Boom Setup tab (B).

3. NOTE: A check mark in the box indicates that “Boom Return to Height” is activated.

   Select check box (C) next to “Boom Return to Height” and a check will appear inside box activating item. To deactivate a check box, touch check box to remove the check.

4. NOTE: The height of boom will be expressed as a percentage of the calibrated range. If more than one height is to be used often, record the values and plug them in after “Boom Return to Height Setpoint”.

   Input box (D) shows the current set point. Select the box and enter new set point using pop-up keyboard.

5. Move boom up or down to correct height.

6. Press “Enter” button (E) next to “Boom Return to Height Set to Current Height” to save this value.

7. Start spraying operation.

8. At turnrow raise boom using top of switch (F) to avoid boom striking obstacles.

9. While turning in on next rows to be sprayed, press and hold bottom of switch (G) until boom is down to set point.

   NOTE: Boom will automatically stop at set point. Boom can be lowered beyond set point by pressing (G) again.

   "Boom Return to Height" will remain active while boom is folding or completely folded. When lowering boom onto boom cradle rests, boom may stop at set point if it is above the boom cradle rest height. Boom can be lowered beyond set point by pressing (G) again.
