Idling Engine

N74871-UN-23JAN07

N76780-UN-21JUN07

A - Engine Speed

B - Throttle Lever

Allowing the engine to idle uses fuel inefficiently and can cause a build-up of carbon in the engine.

If machine must be left with the engine running for more than 3 or 4 minutes, minimum engine speed should be 1000 rpm.

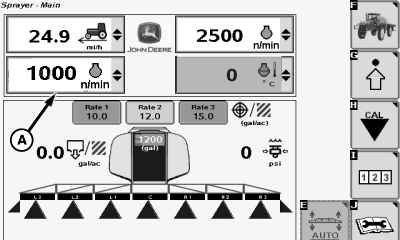

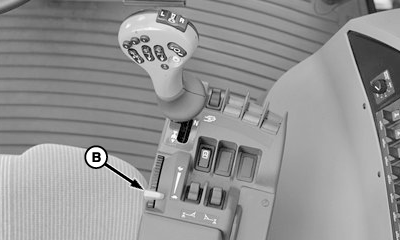

View the engine rpm’s (A) on Sprayer Main Page if that feature has been selected on one of the dropdown menus available on that page. Push forward on throttle lever (B) until desired RPM is displayed.
