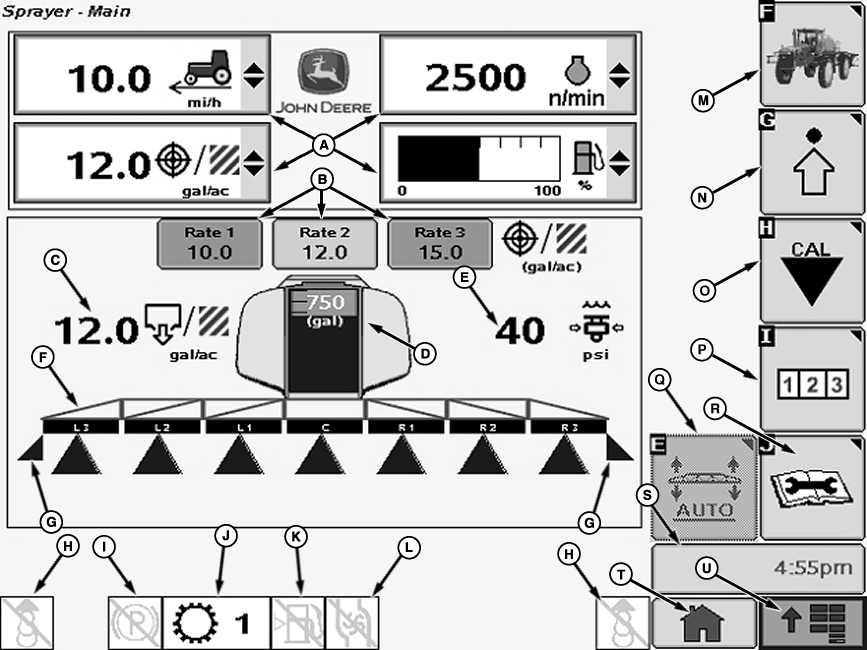

Sprayer Main Page

N74378-UN-31JAN07

Sprayer Main Page

A - Information Drop Down Menu

B - Pre-programmed Target Rates Per Area

C - Actual Rate Per Area

D - Estimated Remaining Tank Volume

E - Pressure

F - Boom Sections Status

G - Left or Right Fence Row Nozzle—When Spraying

H - Left Or Right Foam Drop Status

I - Machine in Park

J - Speed Range Selected

K - Fuel Status Icon

L - Solution Pump Status

M - Sprayer Main Softkey

N - Setup Menu Softkey

O - Calibration Menu Softkey

P - Totals Softkey

Q - BoomTrac™ Pro Softkey -If Equipped

R - Diagnostics Softkey

S - Message Center \ Time Display

T - Home Button

U - Menu Button
