Turning Flow Rate Alarm On/Off

N74751
N74751-UN-17JAN07

N74752
N74752-UN-17JAN07

A - Setup Softkey

B - Spray Setup Tab

C - Alarm Setup Button

D - Check Box

E - Enter Button

The flow rate alarm tells the operator when the sprayer applies more or less than 20% of the target application for 6 continuous seconds. “LOW SOLUTION FLOW” or “HIGH SOLUTION FLOW” also appears on the Sprayer Main Page.

To activate or deactivate alarm:

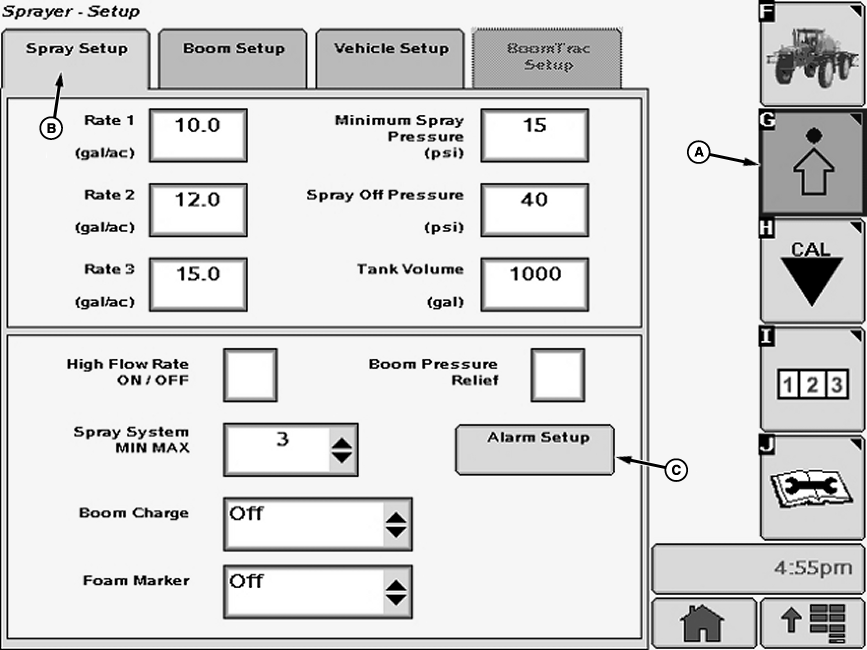

  1. Select the Setup softkey (A) to view the setup menu.

  2. Select the “Spray Setup” tab (B).

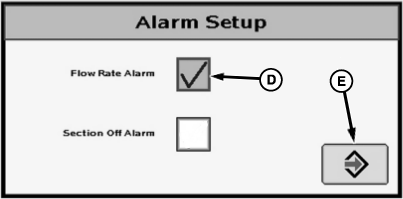

  3. Press “Alarm Setup” button (C). The Alarm Setup screen will appear.

  4. NOTE: A check mark in the box indicates that “Flow Rate Alarm” is activated.

    Select check box (D) next to “Flow Rate Alarm” and a check will appear inside box activating item. To deactivate a check box, touch check box to remove the check.

  5. Select the enter button (E) to return to “Spray Setup” screen.

OUO6092,0000FD8-19-20070815
