Boom Lubrication Locations

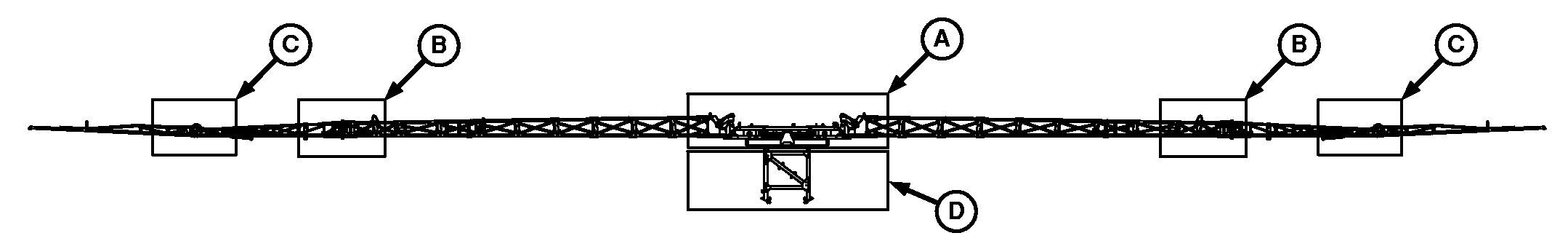

N73104-UN-10JUL06

A - Center Frame, 50 Hour Interval for 13 Fitting Locations

B - Inner to Outer Boom Hinge, 50 Hour Interval for 6 Fitting Locations Each Side

C - Outer to Breakaway Boom Hinge and Chain Pivot, 50 Hour Interval for 2 Fittings Locations Each Side

D - Lift Arms, 10 Hour Interval for 5 Fitting Locations Each Side

Location of grease points on boom.
