Replacing Halogen Driving Light Bulbs

NOTE: High/low beam driving lights are mounted in front of hood grille when sprayer is equipped with Xenon-HID lighting option.

  1. RXA0086435
    RXA0086435-UN-06FEB06

    RXA0086437
    RXA0086437-UN-06FEB06

    A - Screws

    B - Cover

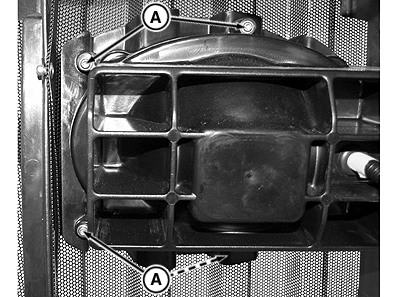

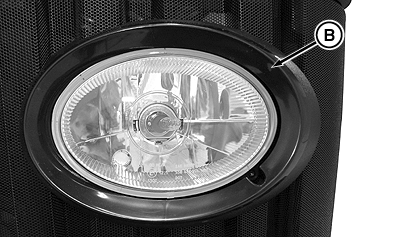

    Remove screws (A) and cover (B).


  2. RXA0086430
    RXA0086430-UN-06FEB06

    RXA0086428
    RXA0086428-UN-06FEB06

    A - Screws

    B - Yellow Wire

    C - Black Wire

    D - White Wire

    E - Boot

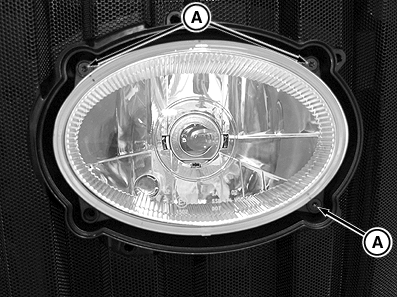

    Remove screws (A).

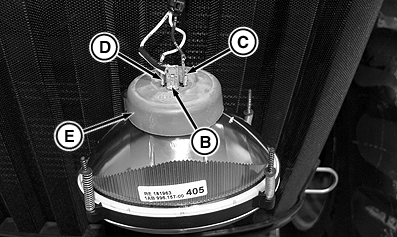

  3. Disconnect wires (B), (C), and (D) and remove boot (E).

  4. RXA0086424
    RXA0086424-UN-06FEB06

    RXA0086426
    RXA0086426-UN-06FEB06

    A - Retaining Spring

    B - Light Bulb

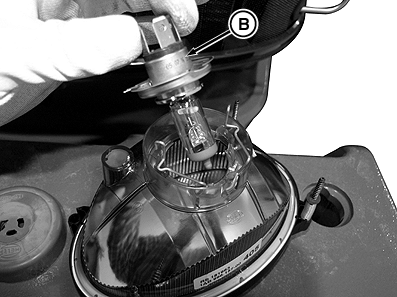

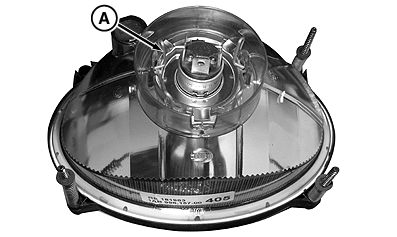

    Remove retaining spring (A) and light bulb (B).


  5. Install new light bulb in reverse order of removal.

  6. Adjust driving lights, if necessary. (See Adjusting Headlights in this section.)
