Driving the Machine

1.

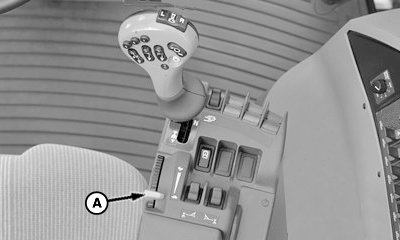

   N80094-UN-04MAR08

   A - Throttle

   Ladder will automatically retract when machine moves.

---




2. Push throttle (A) forward to achieve maximum engine speed.

3. IMPORTANT: Machine damage can occur if speed range switch is moved from a higher speed range to a lower speed range causing the engine to exceed 3000 RPM’s. Speed range can be changed when machine is moving or stopped.

   Drive train damage can occur if multifunction control handle is advanced more than halfway when wheels are spinning (loss of traction).

   NOTE: When machine is started or has been shut down and restarted, first speed range is automatically selected by the Chassis Control Unit (CCU).

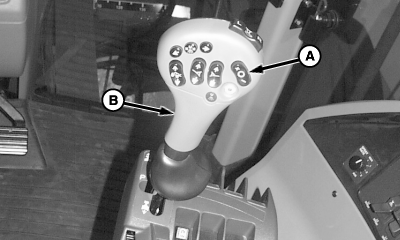

   N67611-UN-16SEP04

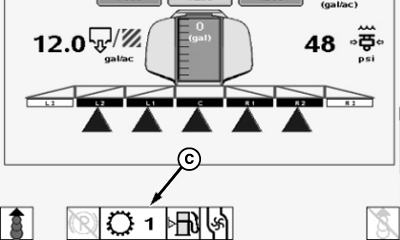

   N74873-UN-23JAN07

   A - Speed Range Switch

   B - Multifunction Control Handle

   C - Speed Range

   Push down and release bottom of speed range switch (A) as many times as needed to place machine in first speed range.

   NOTE: Speed range selected (C) is displayed on bottom line of Sprayer Main Page.

---




4. Push multifunction control handle (B) slowly forward to start forward motion. Continue pushing lever forward to increase ground speed. Change speed range switch to higher speed range when engine reaches maximum RPM.

5. IMPORTANT: While under a load, engine and drivetrain overheating can occur if engine drops below 2000 RPM’s for an extended period. Pull back slightly on multifunction control handle to reduce engine load. Maintain at least 2200 RPM at all times.

   To reverse direction of travel, move multifunction control handle to neutral and press brake pedal as needed to bring machine to a complete stop, then move handle to the right and rear to back up machine.

6. Always shift to first speed range to achieve maximum tractive effort in reverse.
