Lubricate Steering Cylinder Ball Joints and Rotating Steering Arms—100 Hours

IMPORTANT: Use only John Deere SD Polyurea Grease for lubricating suspension and steering components. Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

N80278
N80278-UN-13MAR08

N67832
N67832-UN-24SEP04

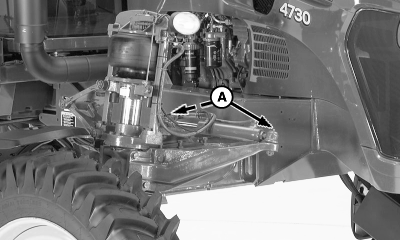

A - Steering Cylinder Ball Joints

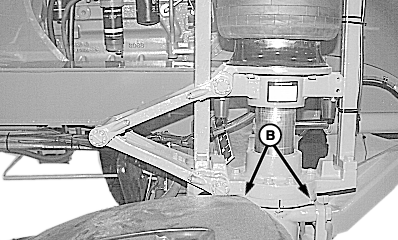

B - Rotating Steering Arms

Lubricate steering cylinder ball joints (A) and rotating steering arms (B) using John Deere SD Polyurea Grease every 100 hours.

OUO6092,000116B-19-20080313
