Inspect Service Brake Components—Annually

1. CAUTION: Service brake system operates at high pressure. To avoid the risk of injury to yourself or bystanders, DO NOT attempt to BLEED the hydraulic components in this system. The hydraulic brake components in this system should only be serviced by your John Deere dealer.

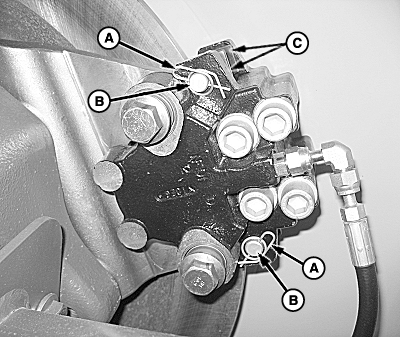

   N74793-UN-16JAN07

   A - Spring Pins

   B - Caliper Pins

   C - Brake Pads

   Remove spring pins (A) and caliper pins (B).

---




2. Remove brake pads (C) from between rotor and caliper.

3.

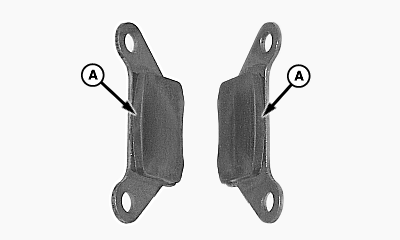

   N60507-UN-03JUL02

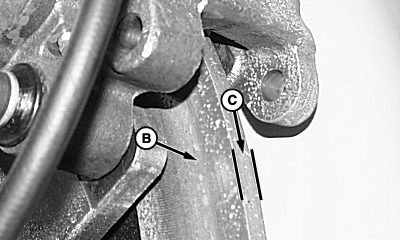

   N60509-UN-03JUL02

   A - Pad Material

   B - Rotor Face

   C - Rotor Thickness

   Inspect brake pad material (A) for deep grooves, uneven wear, and minimum thickness.

   Item	Measurement	Specification
   Brake Pad Material	Minimum Thickness On Each Pad	1.5 mm (0.059 in.)

---




4. Inspect rotor face (B) for deep grooves and uneven wear.

5. Inspect rotor for minimum thickness (C).

   Item	Measurement	Specification
   Rotor	Thickness	11 mm (0.440 in.)

6. (See your John Deere dealer for replacement components as necessary.) Re-assemble brakes in reverse order of removal.
