Display

PC8654
PC8654-UN-05AUG05

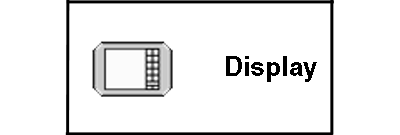

DISPLAY button

  • DISPLAY softkey
  • SETTINGS softkey
    • REGIONAL tab
    • TIME/DATE tab
    • UNITS OF MEASURE tab
  • AUXILIARY CONTROLS softkey
  • DIAGNOSTICS softkey
    • READINGS tab
    • TESTS tab
    • ABOUT tab

PC8689
PC8689-UN-09AUG05

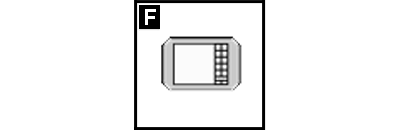

DISPLAY softkey

DISPLAY —Dim, Sync with Cab, Contrast, Day/Night, Volume, Highlight Color

PC8690
PC8690-UN-09AUG05

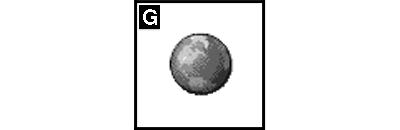

SETTINGS softkey

SETTINGS softkey

REGIONAL tab—Country, Language, Numeric Format, Units

TIME/DATE tab—Date, Date Format, Time, GPS Time Sync, 24 Hour Clock

UNITS OF MEASURE tab—Distance, Area, Volume, Mass, Temperature, Pressure, Force

PC8691
PC8691-UN-16OCT07

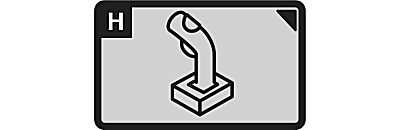

AUXILIARY CONTROLS softkey

AUXILIARY CONTROLS softkey—Input Device, Input, Assigned, Function, Implement

PC8683
PC8683-UN-05AUG05

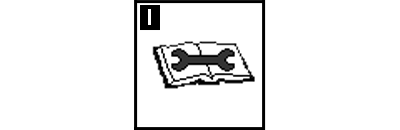

DIAGNOSTICS softkey

DIAGNOSTICS softkey

READING tab—Unswitched Voltage, Switched Voltage, CAN High Voltage (Vehicle Bus), CAN Low Voltage (Vehicle Bus), CAN High Voltage (Implement Bus), CAN Low Voltage (Implement Bus), Operation Hours, Radar Sensor Input, Implement Switch Status, Card Door Status, Card Present, CCD Status, RS232 #1 Status, RS232 #2 Status, Speed Source, Software Part Number, Software Version Number, Hardware Part Number, Hardware Serial Number

TEST tab—Color Test, Touchscreen Test, Touchscreen Calibration

ABOUT tab—Copyright information, Build Initiated, Build Machine, Application Software Build, P/N, S/N, CPLD

OUO6092,00011D4-19-20080331
