Solution Strainers

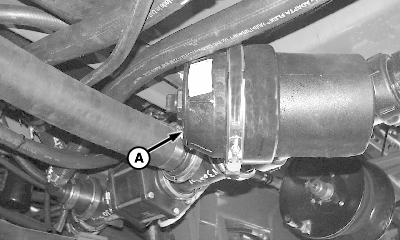

N73113-UN-14AUG06

Fill Strainer-Optional

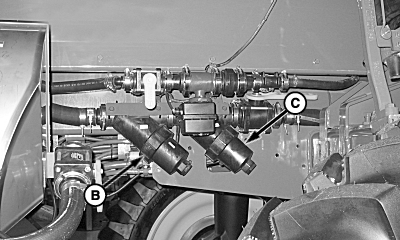

N76707-UN-14JUN07

Pressure Strainers

A - Fill Strainer 2 and 3 Mesh

B - Pressure Strainer- 50 Mesh (Standard)

C - Pressure Strainer- 80 Mesh (Standard)

Strainers are used to help keep dirt and debris from entering and damaging the solution pump, nozzles, and other components. Strainer screens should be removed and cleaned to maintain solution flow.

NOTE: With dual strainers the finer screen (typically 80 mesh) goes into rear strainer housing (C).

See Cleaning Fill Strainer and Cleaning Boom Supply Line Strainers in this section.
