Identification Numbers

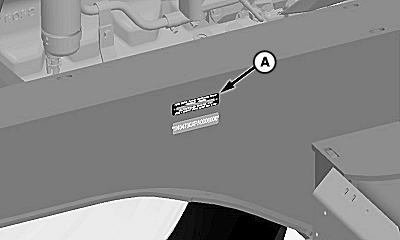

N91910-UN-17MAR11
A - Product Identification Number
Copy these pages to record component serial numbers. This will help when acquiring service parts.
The product identification number (A) is on right-hand side of frame.
Product Identification Number _________________________

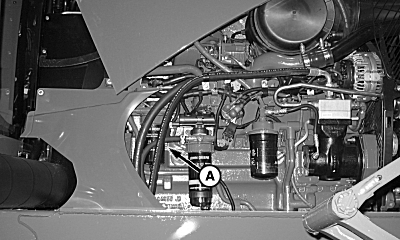

N74844-UN-16JAN07
A - Engine Serial Number
The engine serial number (A) is on the right-hand side of engine block behind fuel filter.Engine Serial Number _______________________________

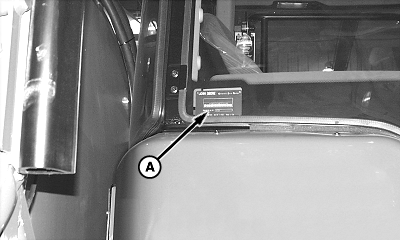

N67100-UN-05AUG04
A - Cab Serial Number
The cab serial number (A) is located at lower rear corner of right-hand cab side glass.Cab Serial Number _________________________________

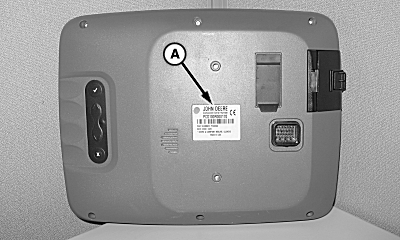

N74920-UN-24JAN07
A - Monitor Serial Number
The monitor serial number is located on the back of the monitor.Monitor Serial Number ________________________________
NOTE: Serial number information for Steering System Control Unit, Chassis Control Unit, Engine Control Unit, and Boom Controller can be retrieved from the SprayStar display.
The steering system control unit (not shown) serial number is on the unit located behind the operator seat.
Steering System Control Unit Serial Number:_______________________

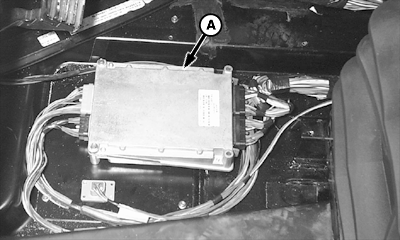

N74909-UN-22JAN07
A - Chassis Control Unit
The chassis control unit serial number is on the unit located under the cab floor.Chassis Control Unit Serial Number _______________________________

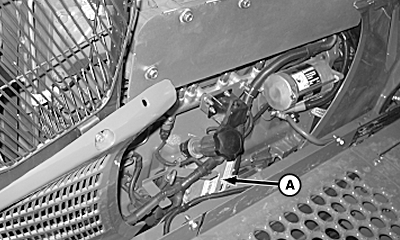

N74910-UN-22JAN07
A - Engine Control Unit
The engine control unit serial number is located on the unit on the left side of the engine.Engine Control Unit Serial Number _______________________________

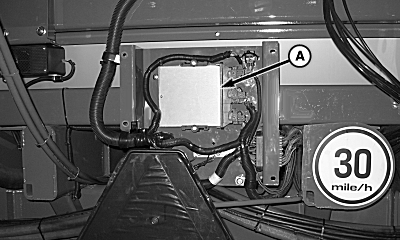

N74911-UN-22JAN07
A - Boom Controller
The boom controller serial number is located on the unit on the rear of the machine below the boom lift hardware.Boom Controller Serial Number _______________________________
SW97031,000000B-19-20110428 |
