Using Rinse System (Rinsing Solution Pump, Boom, and Flowmeter Only)

1. CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Use rinse system in a area where people, animals, vegetation and water supply etc. cannot be contaminated.

   NOTE: To rinse pump, boom, and flowmeter only, perform the following procedure.

   During a boom rinse cycle the pump bleed and air bleed lines will add some fresh water to the solution tank. This could result in the product being diluted and/or extra product in the tank.

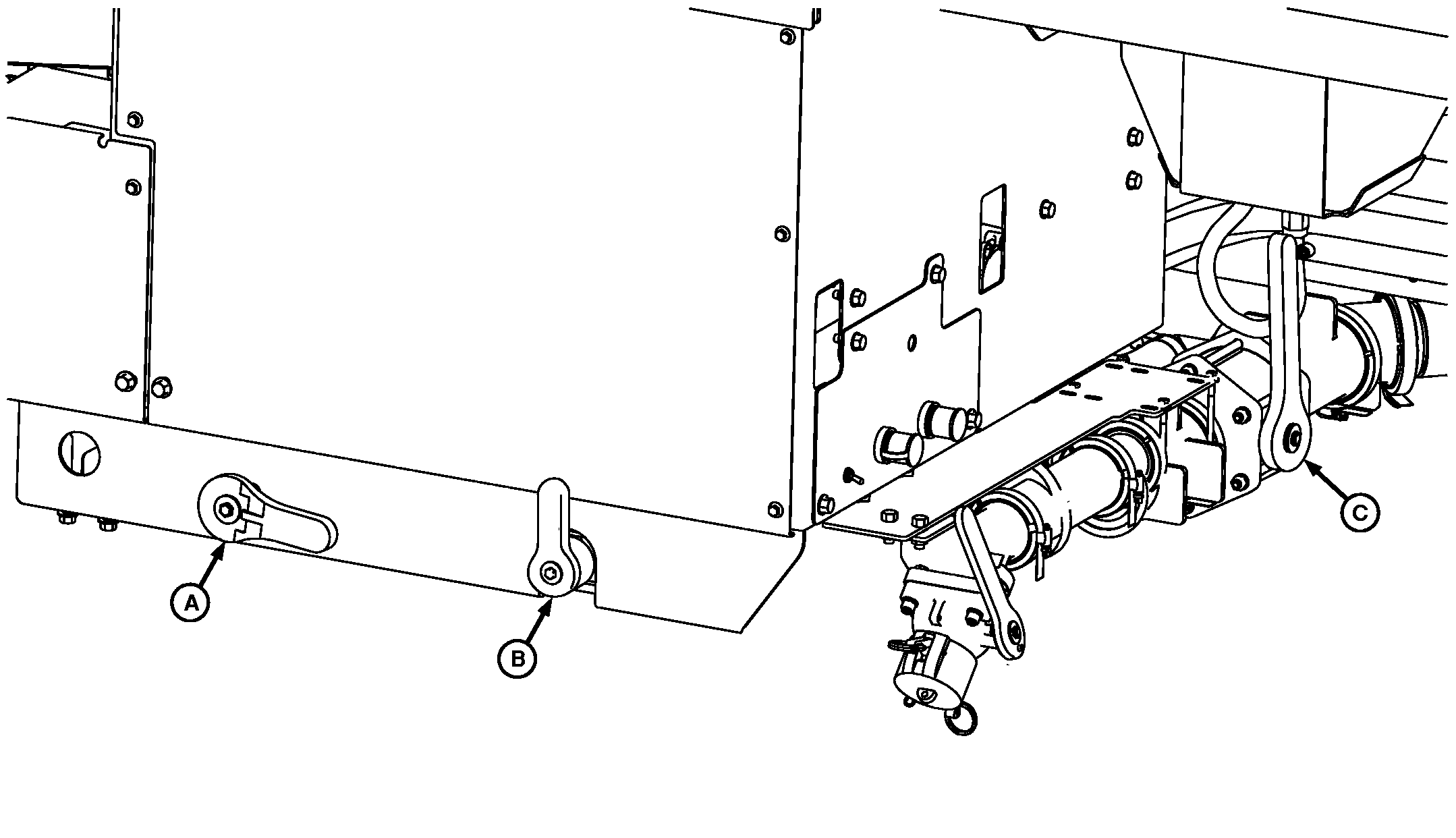

   N83266-UN-23FEB09

   A - Suction Valve

   B - Pressure Valve

   C - Bypass Valve

   Turn suction valve (A) to “RINSE TANK” position.

---




2. Turn pressure valve (B) to “SPRAY” position.

3. Turn bypass valve (C) to “NORMAL” position.

4. Turn on spray system and spray rinse water through boom assembly.
