Draining Solution Tank

N83488-UN-23FEB09

N60523-UN-17JUL02

Shown In Closed Position

A - Quik-Fill Valve

B - Cap

C - Suction Valve

D - Pressure Valve

E - Bypass Valve

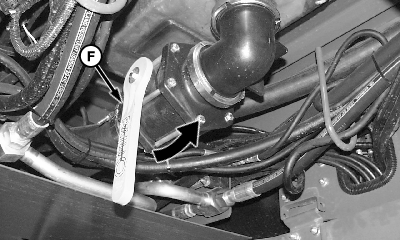

F - Solution Tank Valve

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution tank in an area where people, animals, vegetation and water supply etc., cannot be contaminated.

1. CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), make sure Quik-Fill valve is turned off.

   Do not drain solution onto the ground. Drain into a container.

   Verify Quik-Fill valve is closed.

2. Open lock levers and remove cap (B).

3. Verify suction valve (C) in “SOLUTION TANK” position.

4. Verify pressure valve (D) in “SPRAY” position.

5. Turn bypass valve (E) to “NORMAL” position.

6. Open solution tank valve (F) if closed.

7. Connect nurse tank hose to Quik-Fill or place suitable container under Quik-Fill to catch solution.

8. Open Quik-Fill valve.

9. After solution has drained close Quik-Fill valve.
