Cleaning Flowmeter(s)—As Required

1. NOTE: Clean flowmeter(s) (A) as needed with John Deere Brake and Parts Cleaner if the following condition exists:

   • Application rates fluctuate




   N88061-UN-06APR10

   A - Flowmeter Shut-off Valve

   Shut off solution pump.

---




2. CAUTION: Do not close the flowmeter shut-off valve with the solution pump running. This can trap pressure in the boom that can be hazardous when removing flowmeters for cleaning.

   Close flowmeter shut-off valve (A).

3. CAUTION: Do Not drain solution onto the ground. Drain into a container. Drain solution in an area where people, animals, vegetation, and water supply cannot be contaminated.


   N88060-UN-06APR10


   N85432-UN-29JUN09

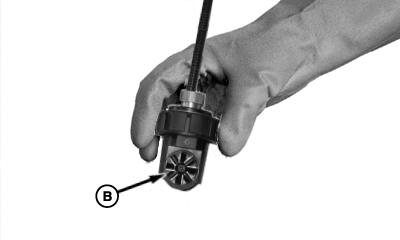

   A - Flowmeter Inserts

   B - Turbine

   Unscrew flowmeter inserts (A) and remove.

---




4. Clean insert with John Deere Brake and Parts Cleaner (Part No. TY26101) by spraying cleaner through internal rotor and bearing area..

5. Install insert in flowmeters.

6. Open flowmeter shut-off valve.
