Filling Solution Tank with Nurse Tank Pump

1. CAUTION: Read carefully the directions printed on the chemical manufacturer’s labels before handling chemicals or you may be exposed to hazardous materials which could poison and injure you.

   IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer’s instructions for mixing the spray solution to obtain the desired application rate and effect.

   CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), make sure Quik-Fill valve is turned off.

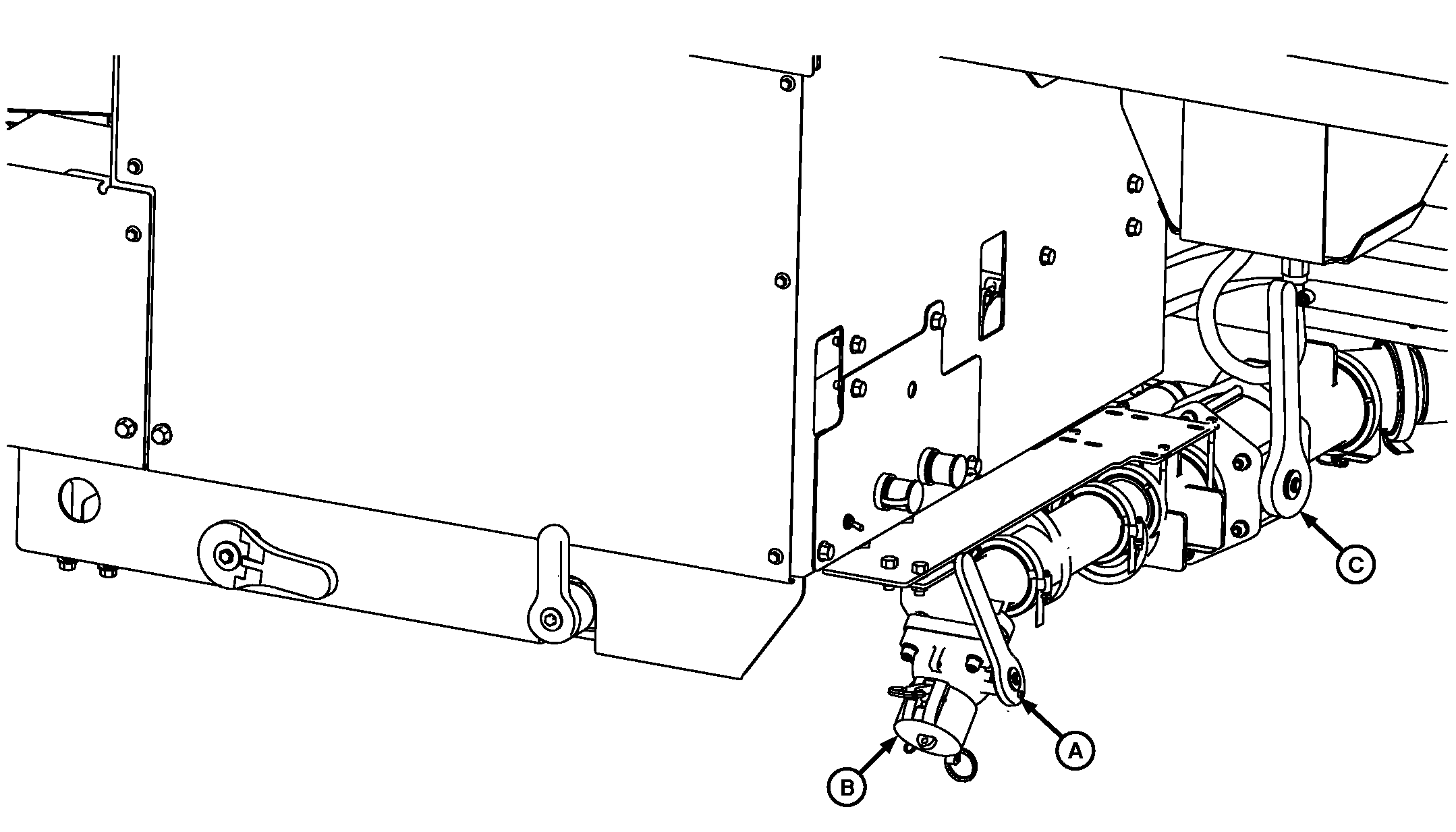

   N83265-UN-23FEB09

   A - Quik-Fill Valve

   B - Cap

   C - Bypass Valve

   Verify Quik-Fill valve closed.

---




2. Open lock levers and remove cap (B).

3. Connect nurse tank fill hose to Quik-Fill adapter and close lock levers.

4. Turn bypass valve (C) to “NORMAL” position.

5.
   N73111-UN-14AUG06

   A - Strainer Shut-Off Valve

   Close strainer shut-off valve (A) when filling sprayer using nurse system pump to avoid air being forced into boom.

---




6. Turn on nurse tank pump and open Quik-Fill valve.

7. After solution tank has filled, close Quik-Fill valve.

8. Turn off nurse tank pump.

9. Remove fill hose from Quik-Fill adapter and replace cap.

10. Open strainer shut-off valve.
