Using Remote Terminals

N74787-UN-12JAN07

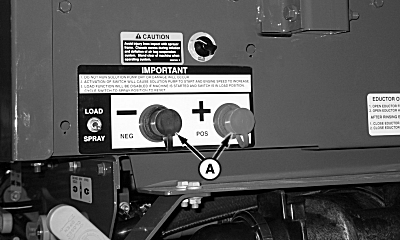

A - Remote Terminals

Use remote terminals to provide power for operating auxiliary items; (such as using shuttle tank pump to put chemicals into eductor).

Do not use remote terminals to apply a boost charge. Boost at the starter and ground stud. (See Using A Booster Battery Or Charger in Batteries section.)

IMPORTANT: Do not attempt to jump start machine from these terminals. They are protected with 30 amp fuse.
