OMN405620

Light Operation Table

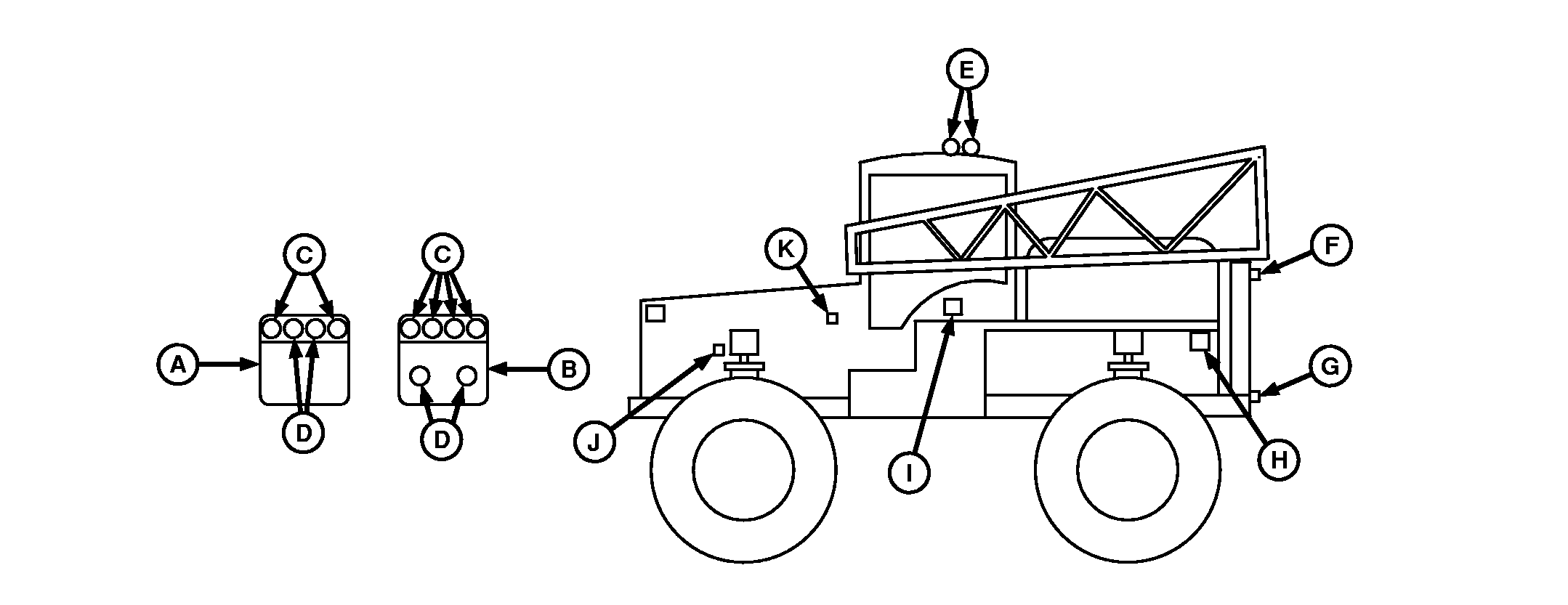

N76721
N76721-UN-14JUN07

A - Standard Halogen Option Hood / Grill Lights

B - HID Option Hood / Grill Lights

C - Work Lights

D - HI/LOW Beams

E - Roof Floods

F - Rear Caution (Yellow)

G - Tail/Stop (Red)

H - Fill Station

I - Platform Floods

J - Steer Floods

K - Front Caution (Yellow)

ROAD LIGHT SWITCH
DIMMER SWITCH
LOW BEAM
HIGH BEAM
FILL STATION
ROOF FLOODS
STEER FLOODS
HOOD WORK LIGHTS
PLATFORM FLOODS
HOOD WORK LIGHTS (HID ONLY)
OFF
LOW
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
HIGH
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ROAD
LOW
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ROAD
HIGH
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
FIELD 1
LOW
ON
OFF
OFF
OFF
ON
ON
ON
OFF
FIELD 1
HIGH
OFF
ON
OFF
OFF
ON
ON
ON
OFF
FIELD 2
LOW
ON
OFF
ON
ON
ON
ON
ON
ON
FIELD 2
HIGH
OFF
ON
ON
ON
ON
ON
ON
ON

ROAD LIGHT SWITCH
WARN SWITCH
TURN SIGNAL
REAR TAIL (RED)
FRONT / REAR CAUTION (North America)
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON T
OFF
ON
OFF
OFF
ON H
OFF
ON
ON
OFF
ON T
ROAD
OFF
OFF
ON
ON H
ROAD
OFF
ON
ON
ON T
ROAD
ON
OFF
ON
ON H
ROAD
ON
ON
ON
ON T
FIELD 1
OFF
OFF
OFF
OFF
FIELD 1
OFF
ON
OFF
ON T
FIELD 1
ON
OFF
OFF
ON H
FIELD 1
ON
ON
OFF
ON T
FIELD 2
OFF
OFF
OFF
OFF
FIELD 2
OFF
ON
OFF
ON T
FIELD 2
ON
OFF
OFF
ON H
FIELD 2
ON
ON
OFF
ON T

ON T—Indicates that light is on when turn signal switch is on.

ON H—Indicates that the light is on when hazard switch is on.

Brake lights are independent of turn or light switches. With key in “Run” position, brake lights will illuminate when the service brake is pressed or the machine decelerates at a rate of 2 m.p.h. per second or greater. Brake lights will also illuminate for 2 minutes if operating at speeds less than 1 m.p.h. speeds.

SW97031,00000C4-19-20110418
