Moving Row Units

N51679
N51679-UN-12NOV99

Unit Moving Tool

N51680
N51680-UN-12NOV99

N51681
N51681-UN-12NOV99

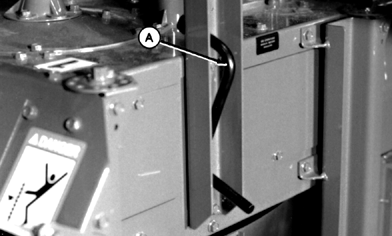

Tool Storage Position

A - Moving Tool

B - Spring Loaded Pin

Row units can be moved apart to gain access for cleaning, inspection and service.

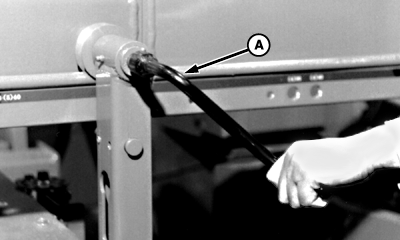

  1. Place unit moving tool (A) on roller hex.

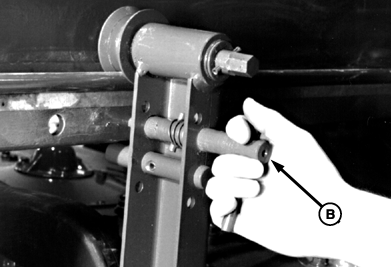

  2. Pull spring loaded pin (B) from hole.

  3. Turn tool to move unit until pin aligns with desired hole location. To prevent roll-back, make sure pin fully engages new hole.

  4. After service, repeat above steps and return unit to original position. Make sure pin fully engages hole.

  5. Return tool to storage position.
