Adjusting High Intensity Discharge (Xenon) Lights (If Equipped)

CAUTION: Fully raise row units and lower safety stops before standing on row units to replace or adjust bulbs.

Read SAFETY RULES WHEN REPLACING HIGH INTENSITY DISCHARGE (HID) XENON BULBS in this section.

NOTE: HID-Xenon light assemblies must be rotated to first notch to achieve correct light angle.

H83537
H83537-UN-20MAY05

N83057
N83057-UN-16FEB09

A - Light Assemblies

B - First Notch

C - Cap Screw

D - Bracket

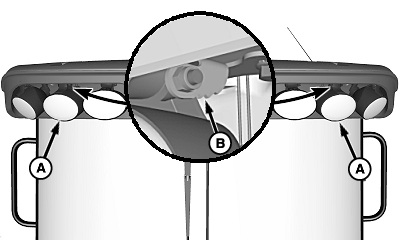

Vertical Adjustment: To adjust HID light assembly vertically, loosen hex nut and rotate light assembly to the first notch (B). Tighten hex nut.

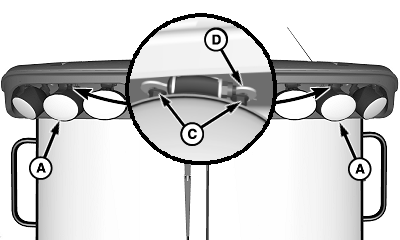

Horizontal Adjustment: To adjust horizontal position of light assembly, loosen cap screw (C) and rotate bracket (D) toward center of cab and tighten cap screw.
