Adjusting Moistener Column Position

IMPORTANT: To ensure proper adjustment, moistener column door must be closed and latched. Remove inspection door in front of moistener column being adjusted to see pad/spindle relationship.

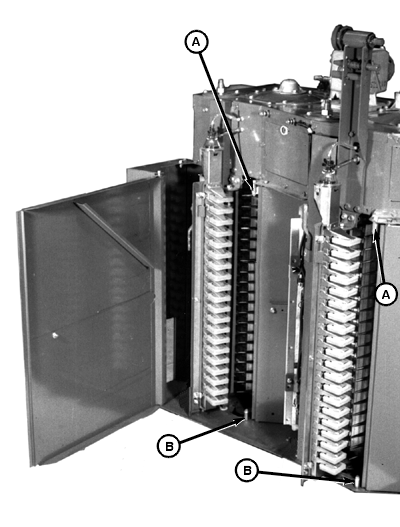

N42176QL
N42176QL-UN-01FEB99

A - Door Latch Stop Cap Screws, Top

B - Door Latch Stop Cap Screws, Bottom

  1. Rotate drum so spindles are just exiting the moistener pads.

  2. Loosen door latch stop cap screws at top (A) and bottom (B).

  3. N66184
    N66184-UN-27MAY04

    A - Moistener Pad Fin

    B - Spindle Dust Collar

    Move door in or out until first fin (A) of each pad just touches front edge of respective spindle dust collar (B).


  4. Tighten door latch stop cap screws.

  5. Adjust moistener column height. (See ADJUSTING MOISTENER COLUMN HEIGHT in this section.)

DP99999,00003DE-19-20090601
