Adjusting Row Unit Tilt

TS675-UN-21SEP89

N80042-UN-03MAR08

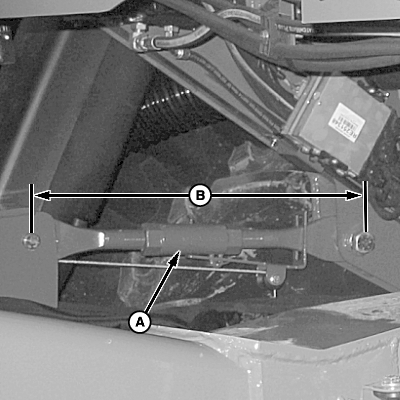

A - Turnbuckle

B - Pin-to-Pin Dimension

CAUTION: Units are heavy. If a unit moves unexpectedly, or if you or others become entangled in moving parts of a unit, serious injury or death can result. Shut off engine and remove key before approaching units.

NOTE: Dimension is center of pin-to-center of pin.

Adjust lift frame turnbuckles (A) so front drums of row units operate 19 mm (3/4 in.) lower than rear drums in actual field conditions. This setting allows spindles to contact more cotton and maximizes trash flow out of unit bottom.

Initial pin-to-pin dimension (B) must be to specification.

Item	Measurement	Specification
Initial Pin-To-Pin	Dimension	660 mm (26 in.)

NOTE: Make sure that both lift frames are adjusted equally.

Final tilt adjustment must be made in row, as pin-to-pin dimension can vary according to bed height.
