Adjusting Plant Guides and Installing Stalklifter Rods

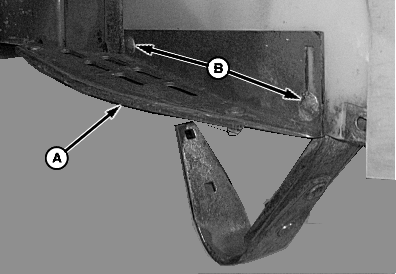

N79874-UN-01FEB08

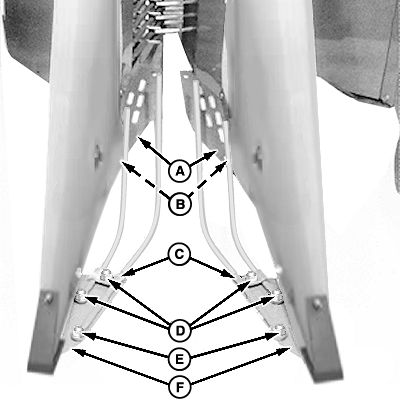

N71924-UN-21MAR06

A - Plant Guides

B - Cap Screws

C - Clamps

D - Cap Screws and Nuts, M10 x25

E - Cap Screws and Nuts, M8 x 25

F - Plates

NOTE: Plant guides lift and direct cotton closer to the lower spindles. The plant guides are installed at the factory in maximum lift position. Adjust plant guides to deliver cotton most efficiently to the lower spindles depending on your field conditions.

1. Loosen cap screws (B) and lower or raise plant guides (A).

2. Tighten cap screws.

3. Install optional stalklifter rods using plates (F), clamps (C), and cap screws and nuts (D and E) as shown.
