Draining and Filling Row Unit Gear Cases

Recommended Service Interval
Drain and Refill Row Unit Gear Cases	After First 50 Hours
Drain and Refill Row Unit Gear Cases	Annually

1. CAUTION: Row units are heavy and if they fall, serious injury or death to you or others can result. Lower units completely to the ground or place safety stops over unit lift cylinder rods before working near units.


   N60792-UN-09OCT02

   A - Shield

   Remove shield (A) from right side of row unit.

---




2.

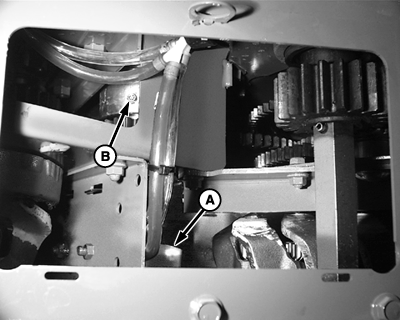

   N60793-UN-09OCT02

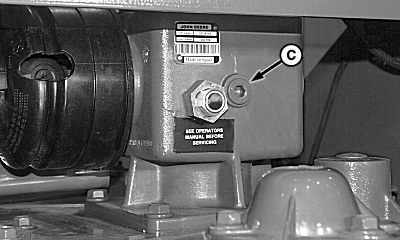

   N60795-UN-09OCT02

   A - Oil Drain Cup

   B - Plug

   C - Plug

   Insert oil drain cup (A) capable of holding 591 mL (20 oz.) of oil underneath gear case output shaft.

---




3. NOTE: Plug (B) is 4.5 mm hex socket head screw.

   Remove plugs (B and C). Drain oil.

4. After oil is drained, apply thread sealant to threads and reinstall plug (B). Remove oil drain cup and wipe up any spilled oil.

5. Install shield on right side of row-unit.

6.
   N58933-UN-21NOV01

   A - Plug

   B - Sight Glass

   Verify sight glass (B) is level and fill gear case with John Deere Hy-Gard™ JDM J20C oil until level with middle of sight glass.

---




7. NOTE: Allow lubricant to flow into lower cavity of gear case, then add lubricant as necessary to obtain proper level.

   Install plug (A).
