Winterizing Cooling System

IMPORTANT: DO NOT drain cooling system to protect against freezing. Operator's station heater does not drain completely. Damage to cooling system can result.

Stop-leak additives can plug radiator, causing overheating and engine damage. DO NOT use coolants that contain a stop-leak additive.

  1. Be sure that cooling system has sufficient coolant before cold weather. Add only specified coolant. (See HEAVY DUTY DIESEL ENGINE COOLANT in Fuels, Lubricants, and Coolants section.)

  2. N75476
    N75476-UN-15MAR07

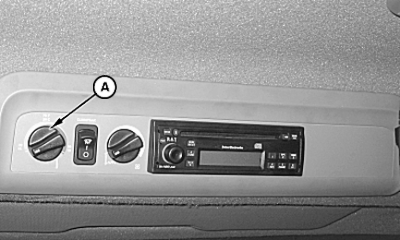

    A - Heater Switch

    After adding coolant, turn heater switch (A) on and run engine until it reaches normal operating temperature to mix solution uniformly and circulate it through entire system.
