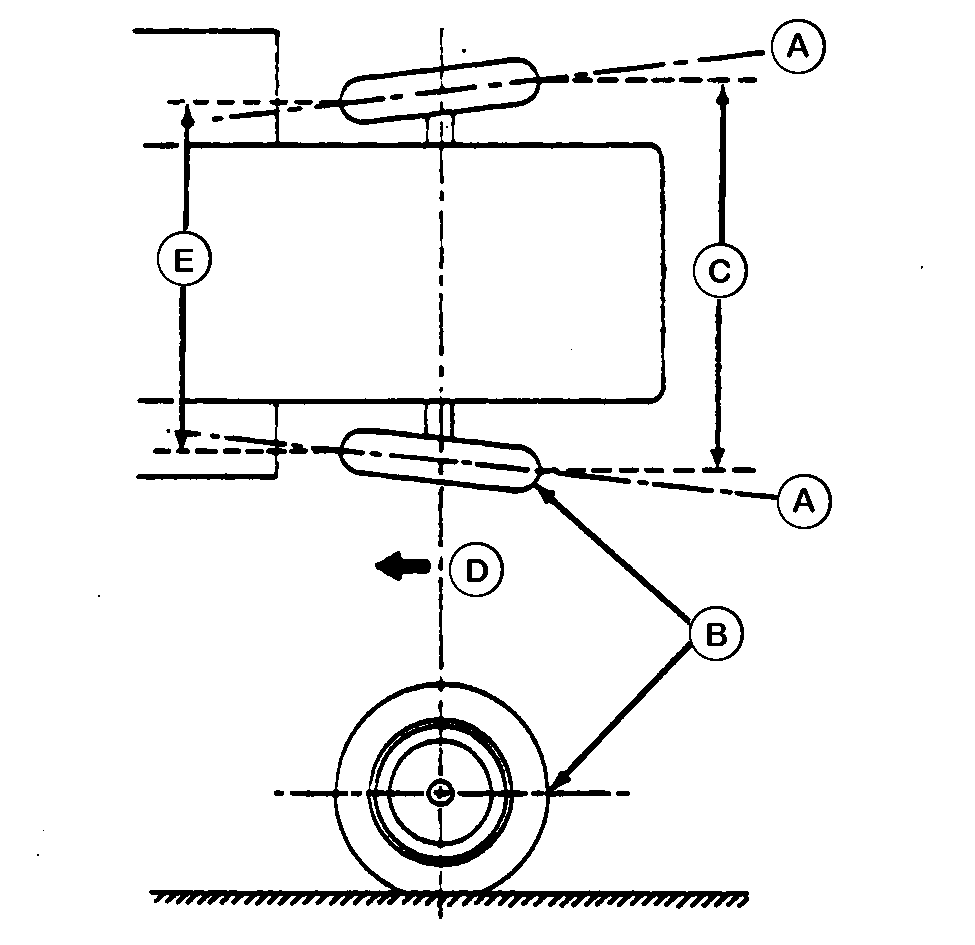

Checking Guide Wheel Toe-In

N42189EH-UN-02JUN98

A - Tire Centerline

B - Axle Centerline

C - Rear Spacing

D - Forward Travel

E - Front Spacing

1. Mark center (A) of each tire tread at rear, in line with axle centerline (B).

2. Measure and record rear spacing (C).

3. Move machine forward (D) until marks are in front, in line with axle centerline.

4. Measure and record front spacing (E).

5. Subtract measurement (E) from (C). Verify that the difference between front and rear spacing is within specification. If not, adjust toe-in. (See ADJUSTING GUIDE WHEEL TOE-IN in this section.)

   Item	Measurement	Specification
   Toe-In	—Rear—Front Dimension	4 ± 4 mm (0.16 ± 0.16 in.)
