Adjusting Guide Wheel Toe-In

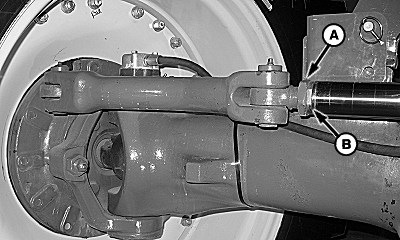

N75490-UN-20MAR07

A - Locking Nut

B - Rod End

1. With steering wheels straight ahead, loosen locking nut (A) on both ends of steering cylinder. Turn rod end (B) until front of wheel toe-in is to specification.

2. Tighten locking nut (A) on each end of steering cylinder.

   Item	Measurement	Specification
   Toe-In	—Rear—Front Dimension	4 ± 4 mm (0.16 ± 0.16 in.)
