Warning Indicators

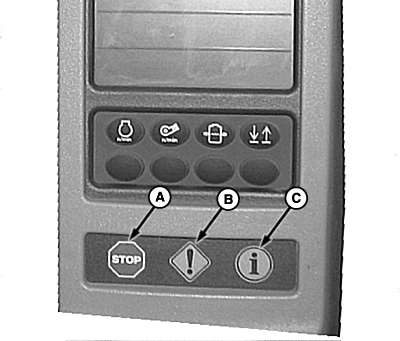

N85266-UN-06NOV09

A - STOP Engine Warning Indicator

B - Caution Indicator

C - Service Information Indicator

STOP Engine Warning Indicator (A) comes on when a serious problem is detected. Diagnostic trouble codes are saved and displayed on the armrest display unit (ADU). Stop machine, shut off engine immediately, and determine cause of problem. Examples include low engine oil pressure or high engine coolant temperature.

Caution Indicator (B) comes on when problems are detected that must be investigated and resolved very soon, but do not require stopping the machine immediately. Diagnostic trouble codes are saved and displayed on the ADU. Examples include high hydraulic oil temperature or restricted engine air filter.

Service Information Indicator (C) comes on for other less serious problems. Diagnostic trouble codes are saved but are not displayed on the ADU.
