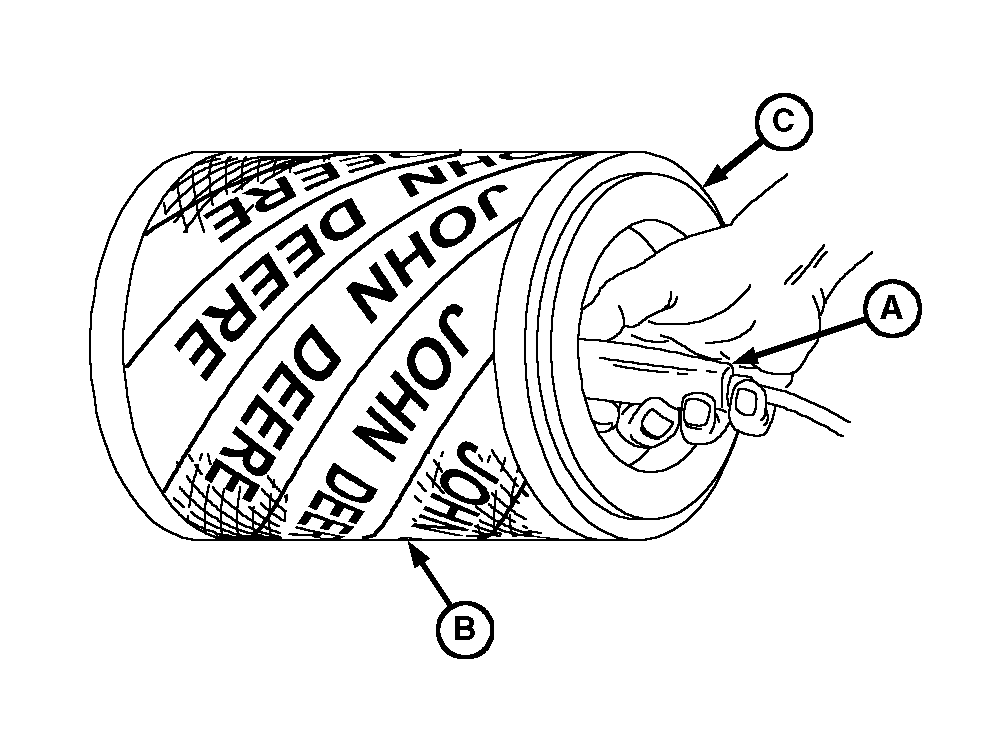

Inspecting Element
-

H59771-UN-31AUG99
A - Light Source
B - Outer Screen
C - Filter Gasket
Hold a bright light (A) inside element and check carefully
for holes. Discard any element which shows the slightest hole.
-
Be sure outer screen (B) is not dented. Vibration can quickly
wear a hole in filter.
-
Be sure filter gasket (C) is in good condition. If gasket is
damaged or missing, replace element.
|
|
DP99999,0000462-19-20100505
|
|
