Jacking Up Front Axle

TS229-UN-23AUG88

N80827-UN-21MAY08

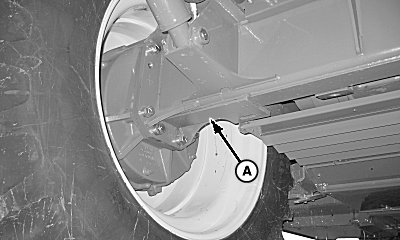

A - Jacking Plate

CAUTION: Machine is heavy and can fall or roll, causing serious injury or death to you or others. Use a jack with a minimum lifting capacity of 13,600 kg (15 tons). Machine must be on a flat, level surface with transmission in neutral, park brake engaged, and key removed.

IMPORTANT: Damage to machine can result from improper jacking. Jack up machine only at designated locations.

1. Position machine on a flat, level surface. Shut off engine and remove key.

2. Position jack on a solid, flat surface beneath jacking plate (A).

3. CAUTION: Machine is heavy and can fall or roll, causing serious injury or death to you or others. Clear bystanders away from machine before jacking.

   Clear all bystanders away from machine. Then, use jack to raise machine only enough to remove wheel or repair tire.

4. Tighten wheel bolts to specification.

   Item	Measurement	Specification
   Drive Wheel Bolts	Lubricated Torque	610 N˙m (450 lb.-ft.)

5. Lower machine to ground.
