Adjusting Halogen Cab Headlights and Field Lights

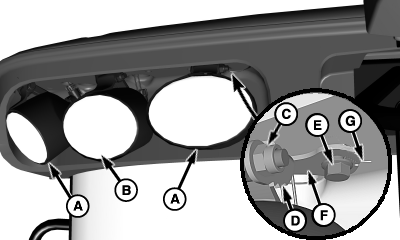

N87416-UN-23NOV09

A - Headlight Assembly

B - Field Light Assembly

C - Hex Nut

D - Notches

E - Hex Nut

F - Bracket

G - Indicator Line

CAUTION: Fully raise left-hand and right-hand row units and lower service locks before standing on row units to replace bulbs or adjust headlights.

Read SAFETY RULES WHEN REPLACING HALOGEN BULBS in this section.

Vertical Adjustment: To adjust headlight assembly (A) or field light (B) vertically, loosen hex nut (C) and rotate headlight up or down in the three notches (D) to achieve the correct lighting angle.

Horizontal Adjustment: To adjust horizontal position of headlight assembly, loosen hex nut (E) and rotate bracket (F) until notch in bracket aligns with indicator line (G).
