Diagnostic Trouble Codes at Start-Up

N80896
N80896-UN-09JUN08

N87830
N87830-UN-26FEB10

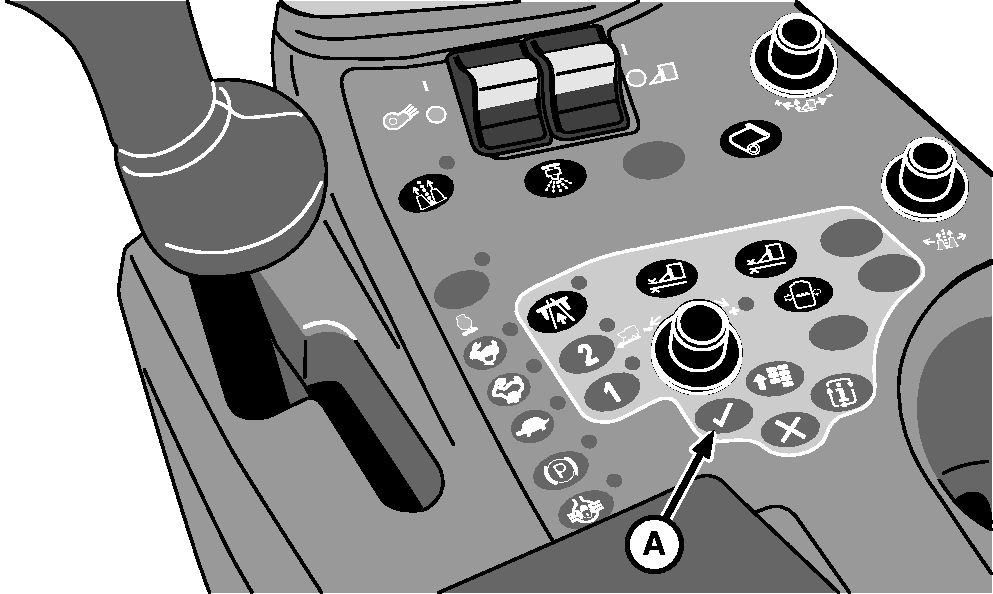

A - Confirm Button

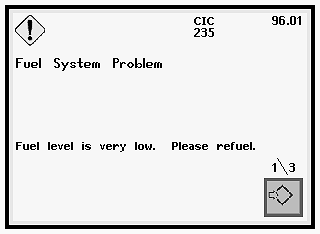

At start-up, active diagnostic trouble codes (DTCs) are shown on the armrest display unit (ADU), one at a time. Numbers in the lower corner of the display tell how many codes are currently active.

NOTE: Acknowledging a DTC does not clear or reset the code.

The operator must view and acknowledge each DTC by pressing confirm button (A). Once all DTCs have been acknowledged, home page screen 1 appears on the ADU.

DP99999,0000503-19-20100303
