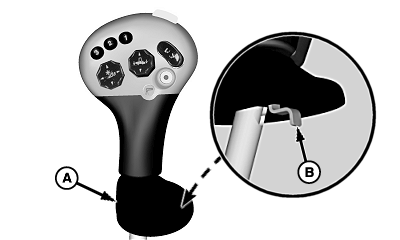

Multifunction Control Handle Palm Rest Adjustment
H85889-UN-10MAY06
A - Palm Rest
B - Lever
Palm rest (A) is adjustable to three detent positions. To raise or lower palm rest, pull lever (B) under palm rest and adjust palm rest to desired position.|
DP99999,0000519-19-20100315 |
