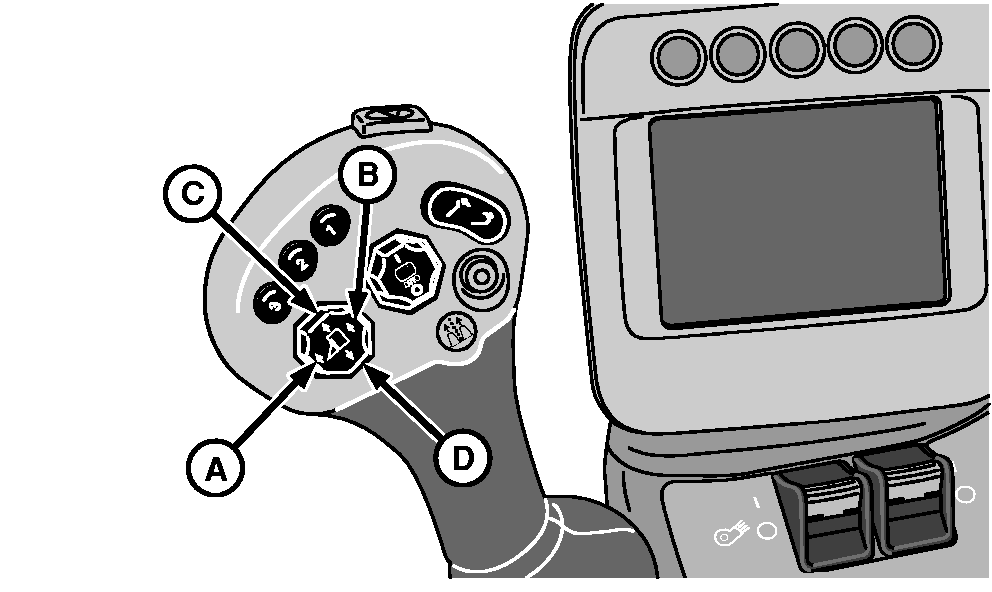

Row Units Raise/Lower Button

N87823-UN-26FEB10

A - Raise Left-Hand Units Position

B - Raise Right-Hand Units Position

C - Raise All Units Position

D - Lower All Units Position

This button allows the operator to raise either the left or right-hand set of row units to clear an obstacle while the opposite set of units remain at the height programmed into the header height control system. This button also allows the operator to raise or lower all units at the same time.

NOTE: Header height control system is activated when row units are engaged and units are lowered using this button. (See Header Height Control section for details.)

Press and hold button in position (A) to raise left-hand units only.

Press and hold button in position (B) to raise right-hand units only.

Press and hold button in position (C) to raise all units.

Press and hold button in position (D) to lower all units.
