Handler Raise/Lower Switch

NOTE: The handler raise/lower switch has multiple functions.

Machine must be in harvest mode for handler switch to work.

Auto dump and auto return features operate only when machine is moving.

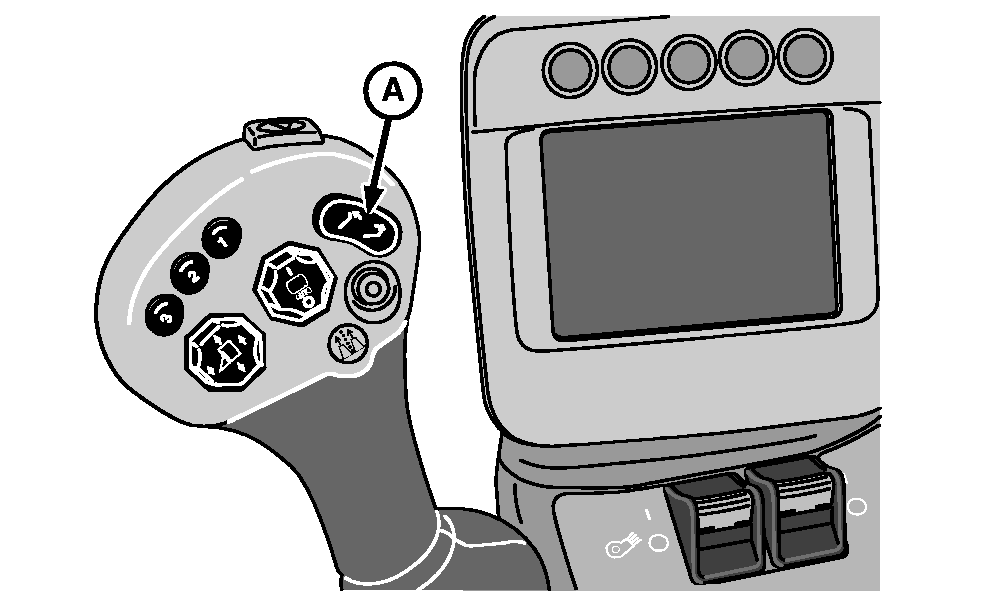

N75729
N75729-UN-12MAY08

A - Handler Raise/Lower Switch

Press top of handler raise/lower switch into first detent position to raise handler. Press into second detent position to engage auto handler return function.

Press bottom of handler raise/lower switch into first detent position to lower handler. Press into second detent position to engage auto handler dump function.

Middle switch position is OFF.
