Height Adjust Buttons

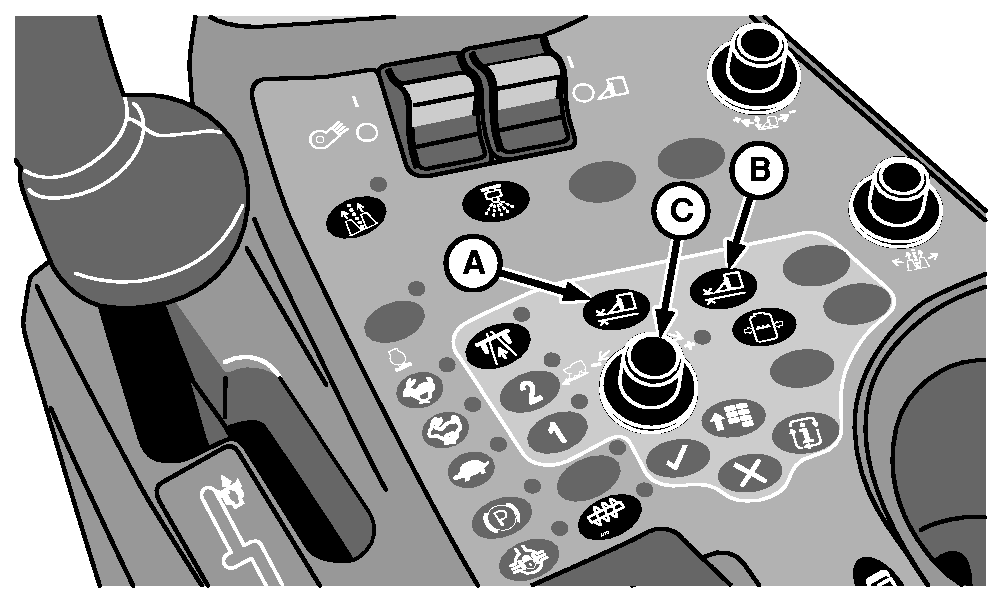

N75738
N75738-UN-19JUL10

A - Left-hand Units Height Adjust Button

B - Right-hand Units Height Adjust Button

C - Selection Dial

Press left-hand units height adjust button (A) to adjust operating height setpoint for row units on left-hand lift frame.

Press right-hand units height adjust button (B) to adjust operating height setpoint for row units on right-hand lift frame.

After a height adjust button is pressed, a display appears on armrest display unit (ADU) and setpoint can be adjusted using selection dial (C).

DP99999,0000524-19-20110627
