Differential Lock Button

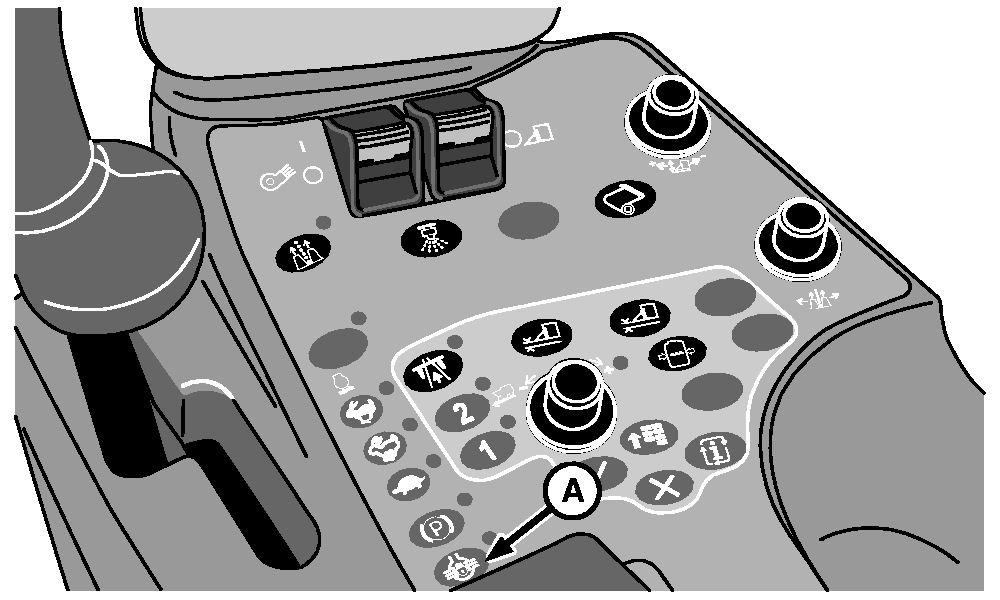

N75799-UN-12MAY08

A - Differential Lock Button

NOTE: Manual differential lock engagement is only possible when engine is running and ground speed is less than 10 km/h (6.2 mph). If ground speed is greater than 10 km/h (6.2 mph) or if the steering angle of rear wheels is more than 10°, the differential is automatically unlocked.

The drive train control unit engages and disengages the front wheel drive differential lock function. The control unit monitors the speed of the front wheels and controls the differential lock function based on that information.

Press differential lock button (A) to engage differential lock. The differential lock symbol is displayed on the armrest display unit (ADU) when differential lock is engaged.
