Parking Machine

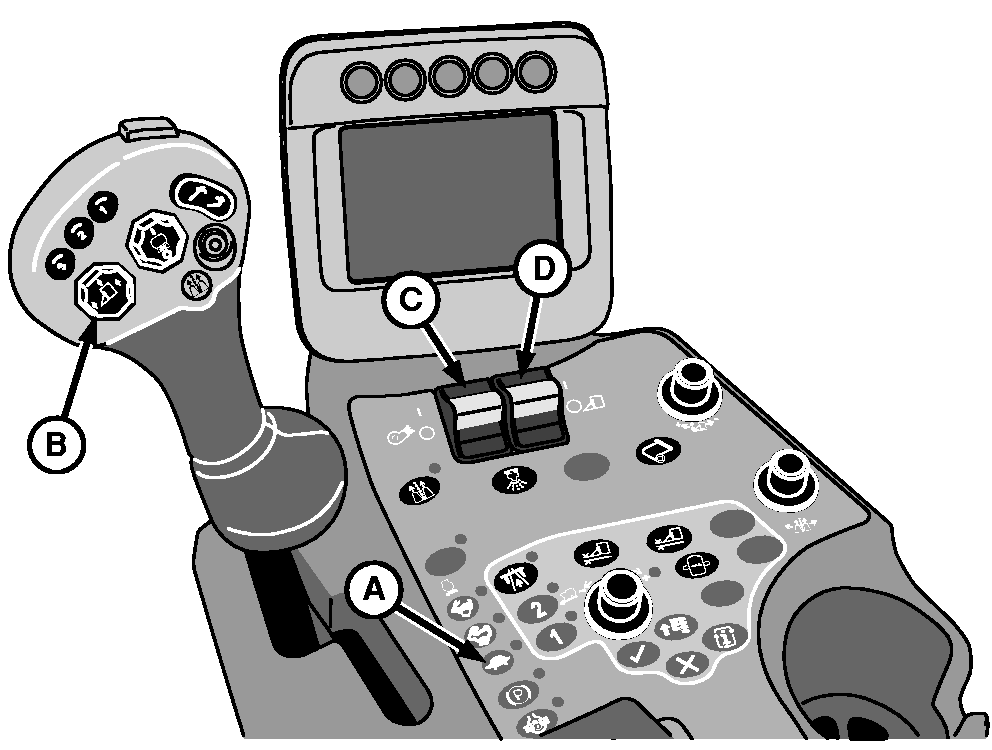

N88162-UN-23MAR10

A - Low Engine Speed Button (Idle)

B - Row Units Raise/Lower Button

C - Fan Switch

D - Row Units Switch

1. Stop machine on a level surface and move multifunction control handle to neutral.

2. Press low engine speed button (A) to run engine at slow idle.

3. Press bottom of row units raise/lower button (B) to lower units to ground.

4. Move fan switch (C) and row units switch (D) to OFF.

5. Turn off all lights and accessories.

   IMPORTANT: If engine is not properly cooled, damage can result. Before stopping engine that has been operating at working load, run engine at least 2 minutes at idle to cool turbocharger and hot engine parts.

6. Turn key switch OFF and remove key.
