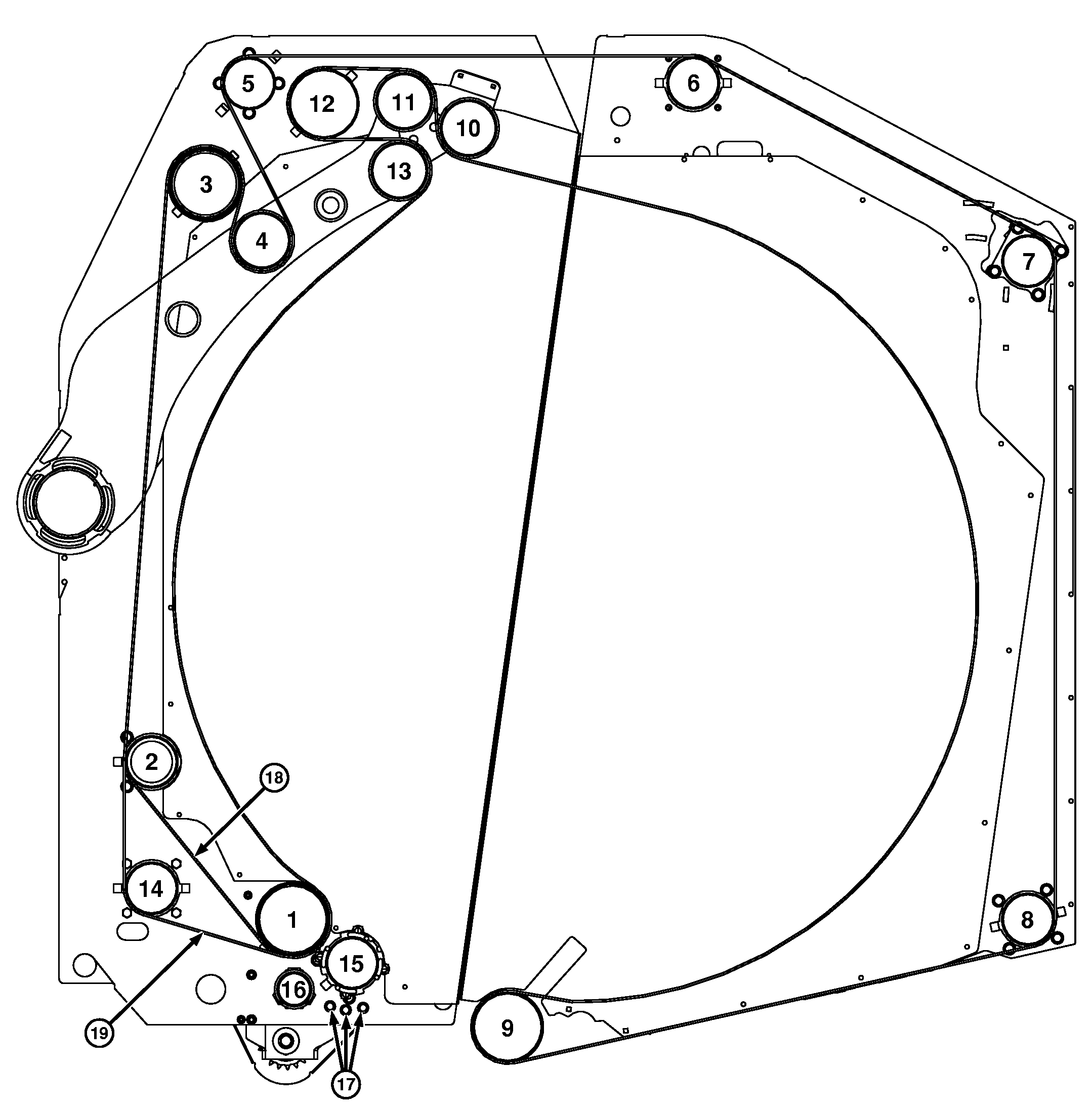

Belt Routing and Roller Diagram

N88302-UN-05APR10

1 - Lower Drive Roller

2 - Upper Separation Roller

3 - Upper Drive Roller

4 - Take-up Roller

5 - Upper Frame Idler Roller
152 mm (6 in.)

6 - Upper Front Gate Roller

7 - Upper Rear Gate Roller

8 - Lower Rear Gate Roller

9 - Lower Front Gate Roller

10 - Rear Pinch Roller

11 - Upper Tip Roller

12 - Upper Frame Idler Roller
230 mm (8 in.)

13 - Front Pinch Roller

14 - Lower Separation Roller

15 - Starter Roller

16 - Laydown Roller

17 - Starter Roller Guard Rollers

18 - Narrow RMB Belt

19 - Wide RMB Belt
