Adjusting Mud Scrapers (If Equipped)

N88337
N88337-UN-09APR10

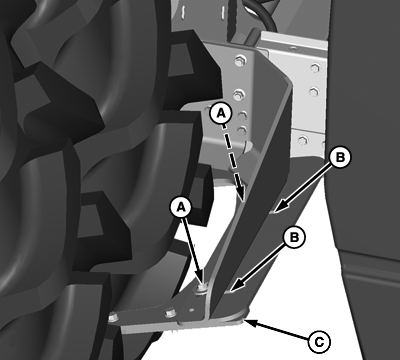

A - Cap Screws

B - Adjusting Slots

C - Bracket

NOTE: Scrapers are used to prevent accumulation of mud on the unit lift cylinders and unit pressure plates. The amount of clearance is determined by field conditions.

  1. Loosen cap screws (A).

  2. Move scraper in or out in slots (B) to adjust clearance.

  3. In extremely muddy conditions, extend out brackets (C) to the next set of holes to keep mud from accumulating between tire sidewall and main frame.
