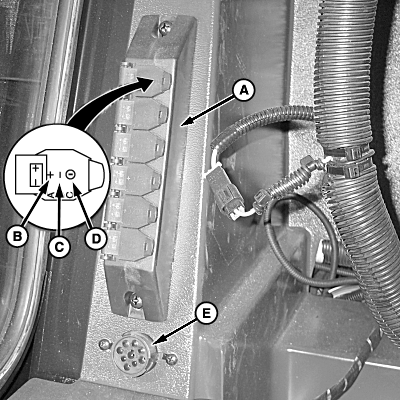

Auxiliary Power Outlet Strip and Diagnostic Connector

N88524-UN-05MAY10

A - Auxiliary Power Outlet Strip

B - Spade Terminal (+ 12 V, Unswitched)

C - Spade Terminal (Ground)

D - Spade Terminal (+ 12 V, Switched On)

E - Diagnostic Connector

Auxiliary power outlet strip (A) is located in cab at lower rear corner of right-hand side window. The strip provides six key-switched or unswitched 12 V DC power outlets for auxiliary equipment. The maximum combined current draw for all outlets is 10 amps.

• Spade terminal (B) is + 12 V DC at all times.
• Spade terminal (C) is ground.
• Spade terminal (D) is + 12 V DC with key switch on.

Diagnostic connector (E) can be used to connect a laptop computer to diagnose machine using Service ADVISOR™.

See your John Deere dealer for available harness connection systems.
