Calibration Screens

N93050-UN-20JUN11

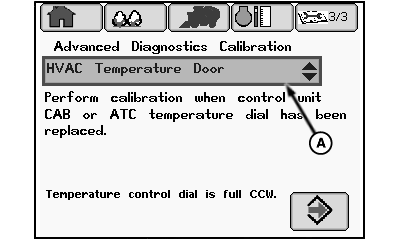

Calibration Main Screen

A - Drop-down Menu

The calibration main screen consists of a drop-down menu (A) which provides access to calibration procedures for the following machine subsystems. These procedures are not intended for use on a routine basis but are necessary following repair or replacement of components in the respective subsystems.

Once a subsystem is selected from the drop-down list, a series of screens listing detailed calibration or adjustment procedures can be accessed.

• HVAC Temperature Door
• HVAC Temperature Switch
• HVAC Fan Switch
• Unit Drive System
• RMB Motors
• Header Height System
• RMB Rockshaft
• RMB Gate and Handler Valves
• Row Guidance Steering
• Row Guidance Crop Sensor
