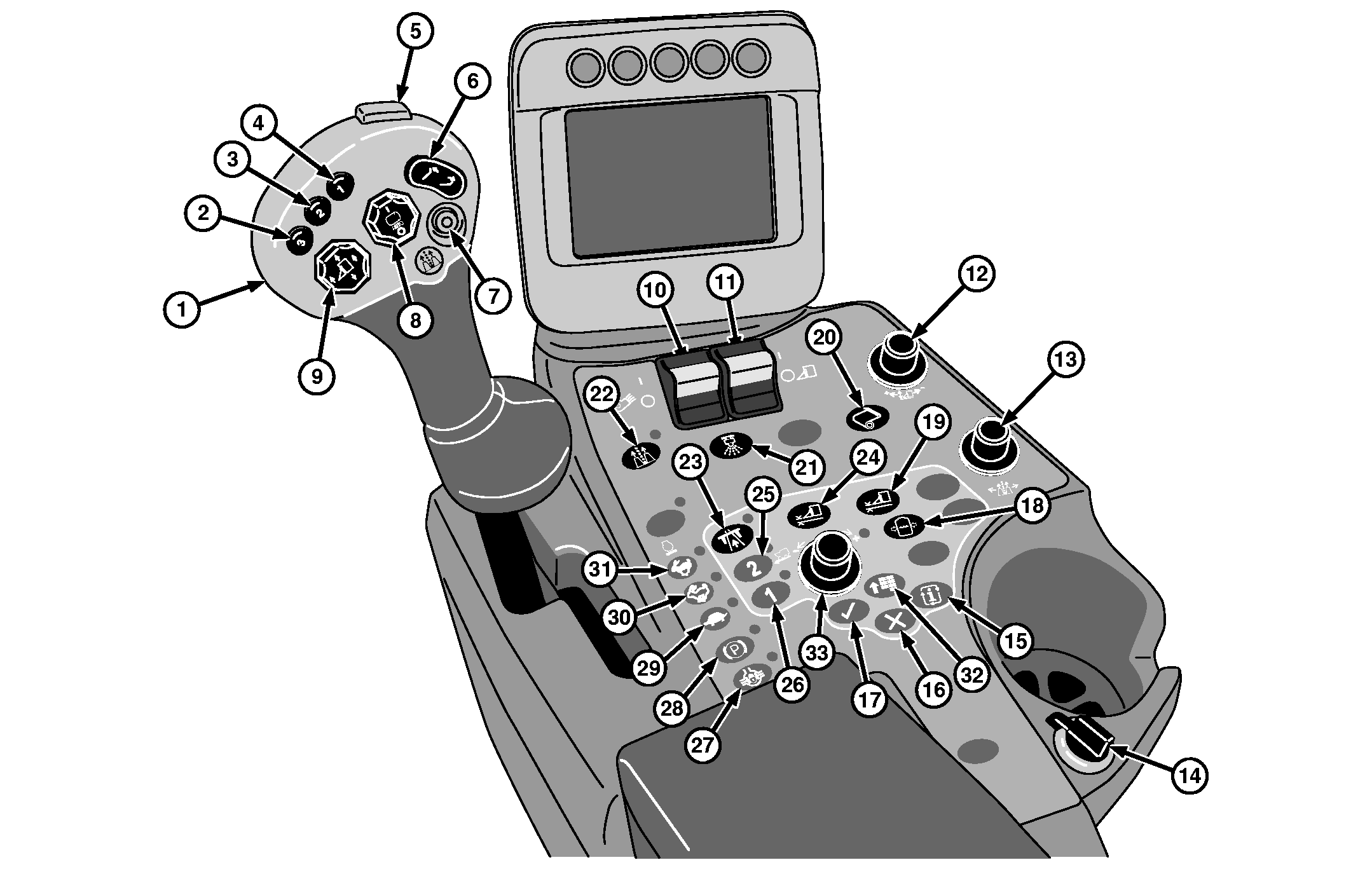

Armrest Console Controls

N75541-UN-06MAY08

1 - Multifunction Control Handle

2 - Camera View Button

3 - Not Used

4 - Moistener Flush Button

5 - Not Used

6 - Handler Raise/Lower Switch

7 - Guidance System Engage Button

8 - Auto Mode Engage Button (Round Module Builder)

9 - Row Units Raise/Lower Button

10 - Fan Switch

11 - Units Switch

12 - Height Sensing Response Rate Dial

13 - Row Guidance Offset Adjustment Dial

14 - Accessory Outlet

15 - Mode Select Button

16 - Cancel Button

17 - Confirm Button

18 - Solution Pressure Adjust Button

19 - Right-hand Units Height Adjust Button

20 - Wrap Request Button

21 - Moistener Flush Button

22 - Guidance System On-Off Button

23 - Road/Field Mode Button

24 - Left-hand Units Height Adjust Button

25 - ProDrive Transmission Range 2 Button

26 - ProDrive Transmission Range 1 Button

27 - Differential Lock Button

28 - Park Brake Button

29 - Low Engine Speed Button

30 - Medium Engine Speed Button

31 - High Engine Speed Button

32 - Main Menu Button

33 - Selection Dial

NOTE: For information on function of controls, see individual descriptions in this section.
