AutoTrac™ RowSense™ Engage Button

NOTE: Guidance system on-off switch on console must be ON for engage button to activate system.

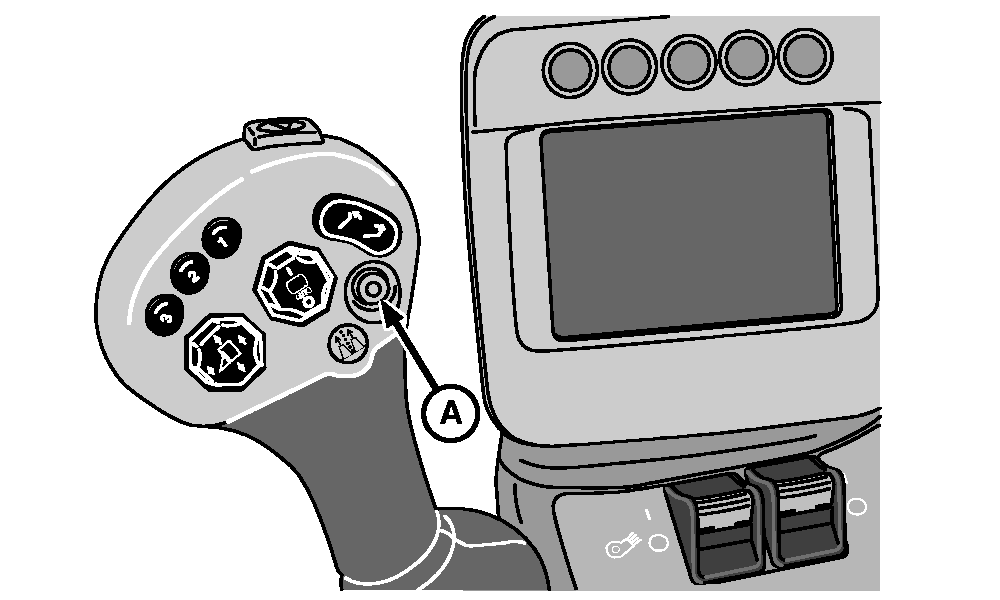

N75730-UN-12MAY08

A - AutoTrac RowSense Engage Button

Press AutoTrac™ RowSense™ engage button (A) to activate the row guidance steering control system. (See Row Guidance System section for details.)

When engage button is first pressed, the guidance system operates using position information from the crop feelers. If the machine is equipped with an AutoTrac license, the system can be operated using global positioning system (GPS) information by pressing engage button a second time. The system can be toggled between the two guidance methods as desired.
