Round Module Builder Monitor Display

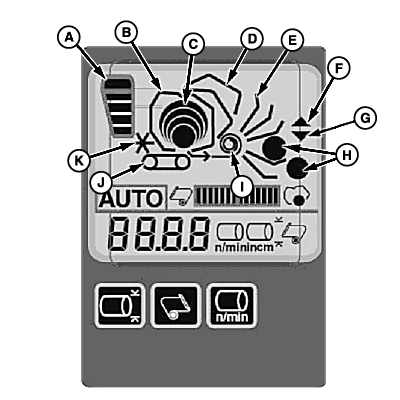

N76810-UN-04NOV08

A - Accumulator Fill Level

B - Round Module Builder

C - Round Module Status

D - Round Module Builder Gate Position Indicator

E - Handler Position Indicator

F - Handler Switch Raise Icon

G - Handler Switch Lower Icon

H - Round Module on Handler Position Indicator

I - Wrap Status

J - Feeder Status

K - Metering Roll Status

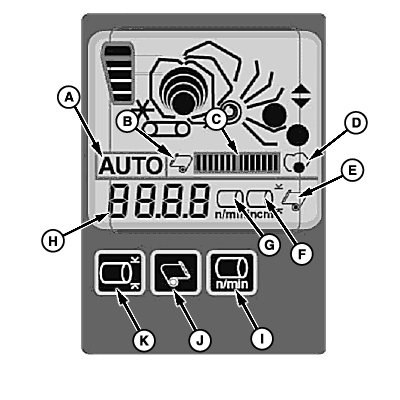

N76811-UN-04NOV08

A - Auto Mode Indicator

B - Wrap Process Icon

C - Wrap and Eject Process Progress Bar

D - Eject Process Icon

E - Wrap Remaining Icon

F - Round Module Size Icon

G - Round Module Builder Speed Icon

H - Digital Display

I - Round Module Builder Speed Button

J - Wrap Remaining Button

K - Round Module Size Button

NOTE: Buttons (I—K) are used to select parameter for display (H). Icons (E—G) indicate which parameter is currently displayed.
