Light Switches

NOTE: If a light switch is turned on with key switch OFF, a delay occurs before lights come on. During this time, the system checks to make sure that battery voltage is high enough to operate lights and still allow machine to be started.

Machine is equipped with exit lighting feature. If road lights or field lights are on when key switch is turned off, two center cab headlights remain on for approximately 3 minutes after light switch is turned off.

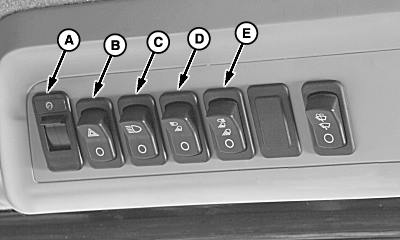

N75986-UN-02MAY07

A - Dimmer Control

B - Hazard Lights Switch

C - Road Lights Switch

D - Field Lights Switch

E - Work Lights Switch

Switches on the overhead control panel control machine lighting as follows:

• Dimmer Control (A)
  • Brightness of interior overhead cab lights
• Hazard Lights Switch (B)
  • Front: amber lights on outer ends of unit lift frames
  • Rear: amber lights on outer ends of machine frame
  • Rear: amber lights on outer ends of handler frame
• Road Lights Switch (C)
  • Four halogen cab headlights
  • Front and rear hazard lights
  • Red tail lights
• Field Lights Switch (D)
  • Four halogen cab headlights
  • Two high intensity discharge (Xenon) cab headlights
  • Four halogen lights on light bar
  • Two halogen lights on lower cab platform
  • Side row-finder lights, activated by turn signal lever
  • Red tail lights

• Work Lights Switch (E) — Position 1
  • Power module light
  • Cooling module light
• Work Lights Switch (E) — Position 2
  • Power module light
  • Cooling module light
  • Left-hand baler platform light
  • Two lights on rear of wrap box
  • Two lights on accumulator extension
