Stopping Engine

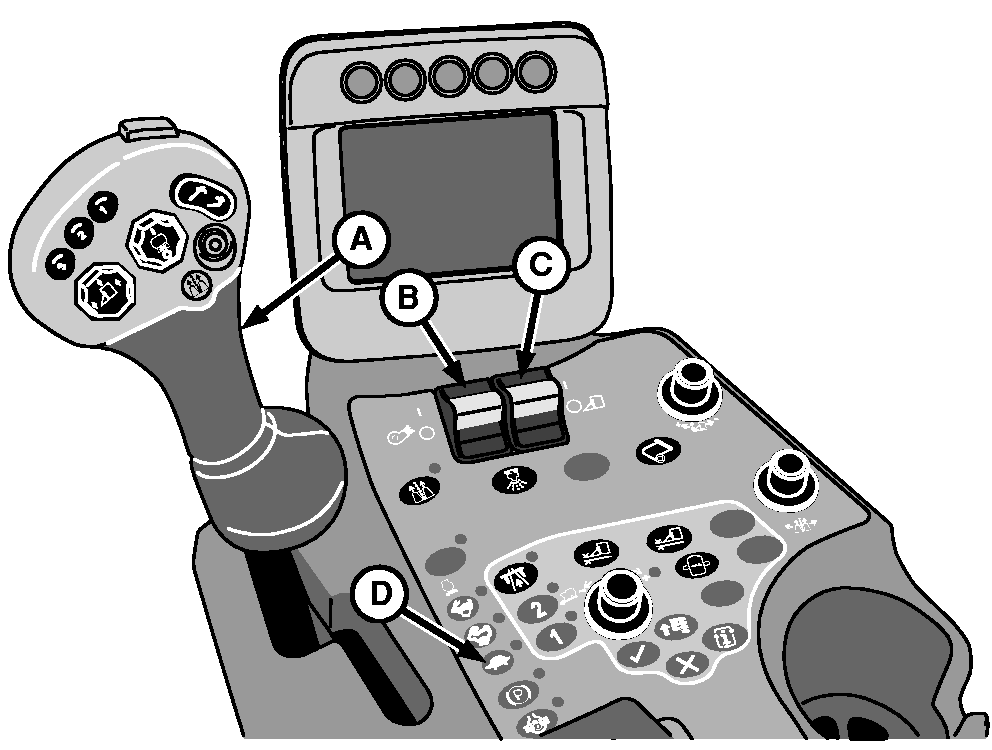

N88159-UN-23MAR10

A - Multifunction Control Handle

B - Fan Switch

C - Units Switch

D - Low Engine Speed Button

1. Move multifunction control handle (A) to neutral.

2. IMPORTANT: Engine oil provides cooling of turbocharger and internal engine parts. Stopping a hot engine abruptly can damage these parts.

   Before stopping engine that has been operating at working load, run engine at slow idle for at least 2 minutes to cool turbocharger and hot engine parts.

   Move fan switch (B) and units switch (C) to off position.

3. Press low engine speed button (D) and allow engine to operate at idle for 2 minutes.

4. Lower units.

5. Turn off all accessory switches.

6. Turn ignition switch off and remove key.
