Transmission Mode 1 Button

N93364-UN-06JUL11

N93366-UN-06JUL11

Low Range Max Speed Setting Screen

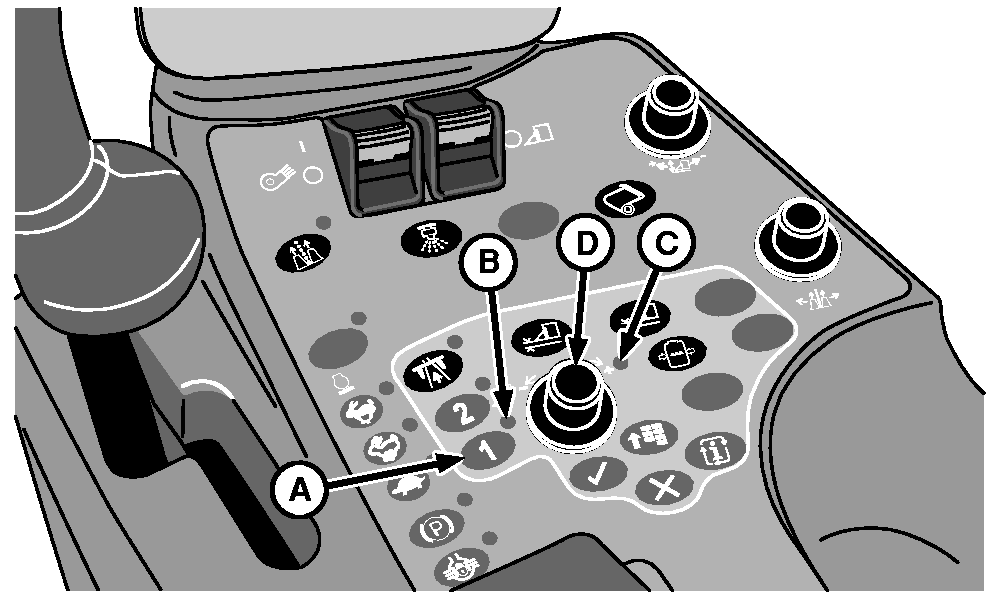

A - Transmission Mode 1 Button

B - Indicator Light

C - Indicator Light

D - Selection Dial

E - Maximum Ground Speed Setpoint

Field Mode In mode 1 (low range), the machine can travel at speeds up to 6.8 km/h (4.2 mph). Actual speed depends on engine speed setting, multifunction control handle position, and low range maximum speed setpoint. When control handle is moved fully forward, ground speed increases to setpoint value.

Road Mode In mode 1 (low range), the machine can travel at speeds up to 14.5 km/h (9.0 mph). Actual speed depends on engine speed setting and multifunction control handle position.

NOTE: Low range maximum ground speed cannot be set to a value greater than the current high range maximum ground speed setting.

Set maximum low range ground speed as follows:

1. Press and hold transmission mode 1 button (A) for 2 seconds. Low range setpoint adjustment screen appears on armrest display unit (ADU). Indicator light (C) comes on.

2. Rotate selection dial (D) clockwise toward plus (+) symbol to increase maximum speed setpoint (E). Rotate dial counterclockwise toward minus (-) symbol to decrease setpoint.
