Fuse Identification

NOTE: Fuses are located behind the front cover on the power module.

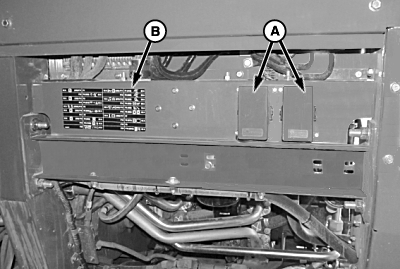

N96276-UN-06JAN12

Fuse Blocks

A - Fuse Block (2 used)

B - Fuse Identification Decal

N93562-UN-12JUL11

Fuse Identification

F012 - Light Bar Circuit 2
30 amp

F052 - Light Bar Circuit 1
30 amp

F022 - Lower Rear Field Lights
30 amp

F652 - Transmission Control Unit (PTP)
30 amp

F492 - Auxiliary Water System Pump
15 amp

F062 - Engine Control Unit (ECU), Powershift Transmission Control Unit (PTP)
20 amp

F072 - Modular Telematics Gateway Control Unit (MTG), StarFire™ Receiver, RFID Reader
10 amp

F5042 - Low Pressure Fuel Pump
20 amp

F092 - Cab Control Unit, Key Switch, Horn
30 amp

F972 - Radio, Armrest Display Unit (ADU), Corner Post Display Unit (CDU)
15 amp

F992 - Wiper Motor, Cigar Lighter, Convenience Outlet
30 amp

F932 - Accessory Switch, Dome Light, Air Seat Compressor
30 amp

F902 - Cab Roof Lights (1,3,4,6), Tail Lights
30 amp

F912 - Cab Backlighting, Cab Roof Lights (2, 5) Right-hand Amber Warning Lights
30 amp

F942 - Cab Pressurizer Blower Motor, Left-hand Amber Hazard Lights
30 amp

F922 - Cab Recirculation Blower Motor
30 amp

F1222 - Guidance System Control Unit (SSU)

F502 - License Plate Light, Backup Light (if equipped)
15 amp

F162 - Header Interface Control Unit (HIC)
30 amp

F152 - Header Interface Control Unit (HIC)
30 amp

F5062 - Fuel Dosing Pump (Interim Tier 4 Only)
15 amp

F362 - Baler Interface Control Unit (BIC)
30 amp

F352 - Baler Interface Control Unit (BIC)
30 amp
